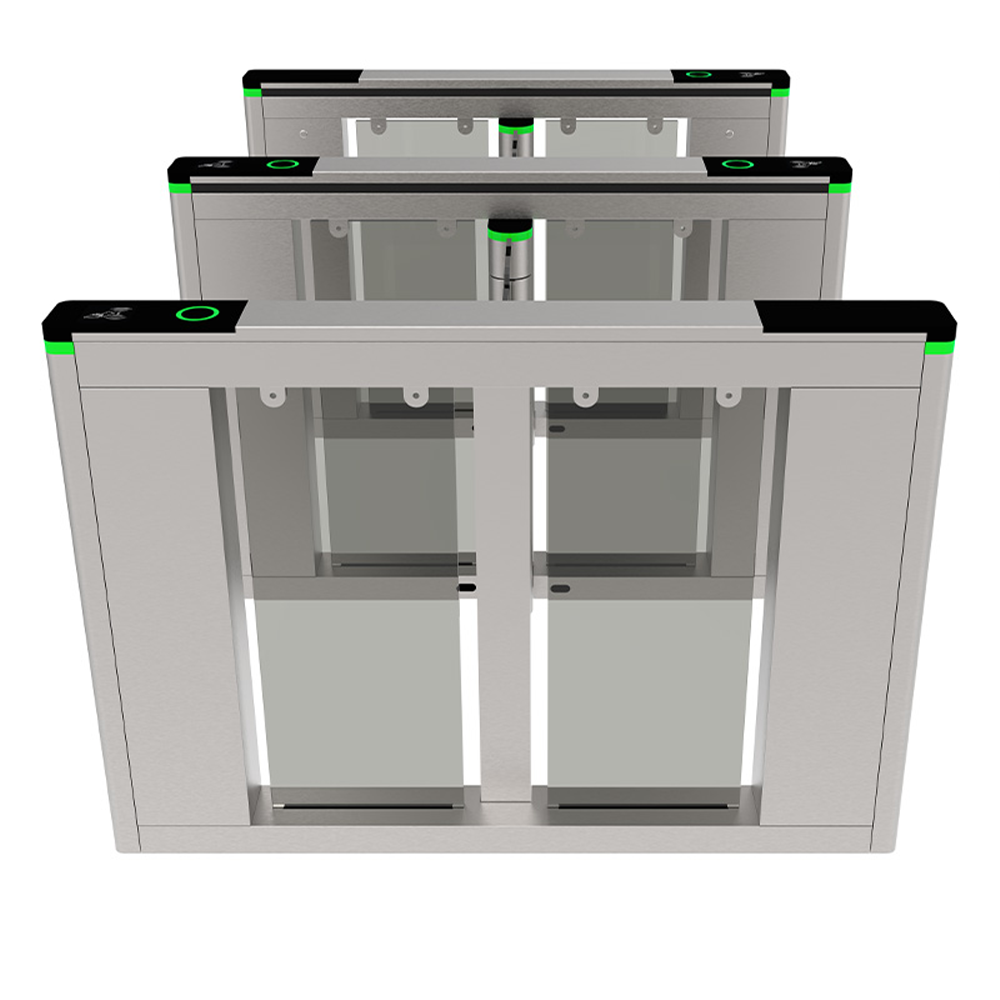

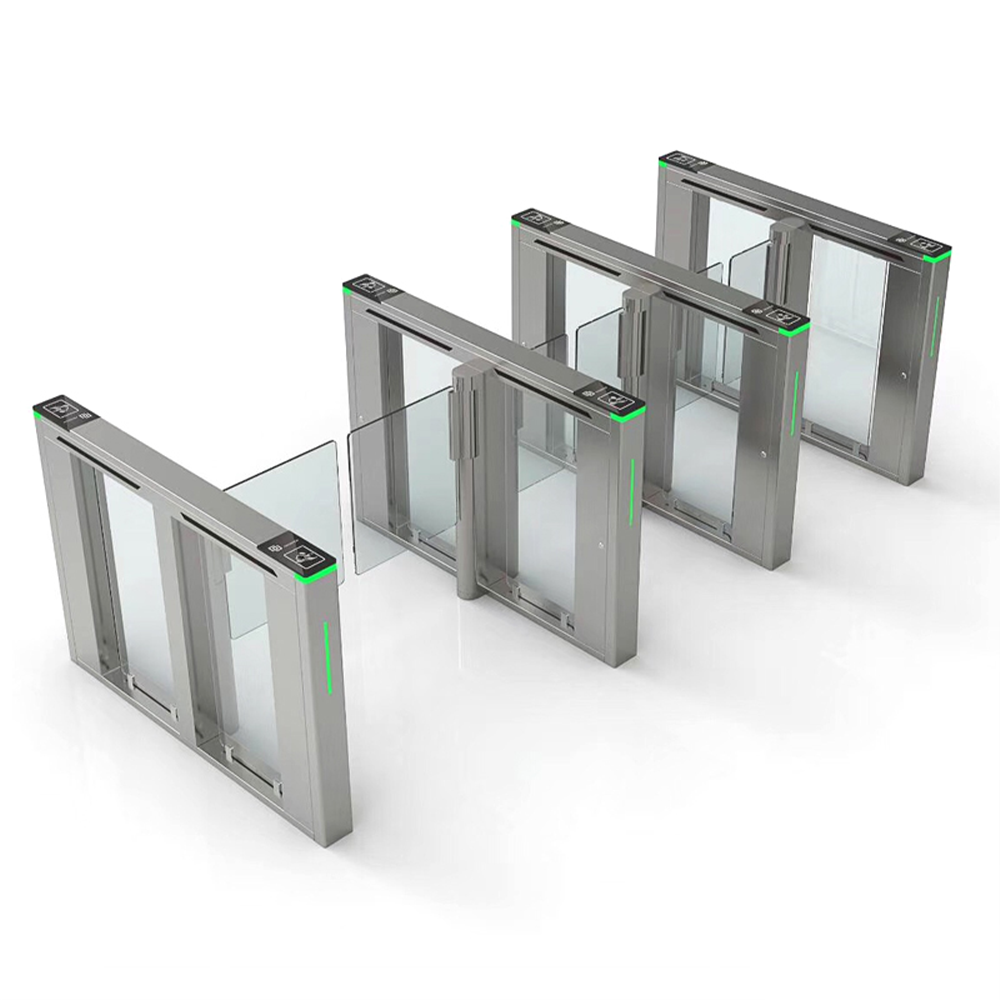

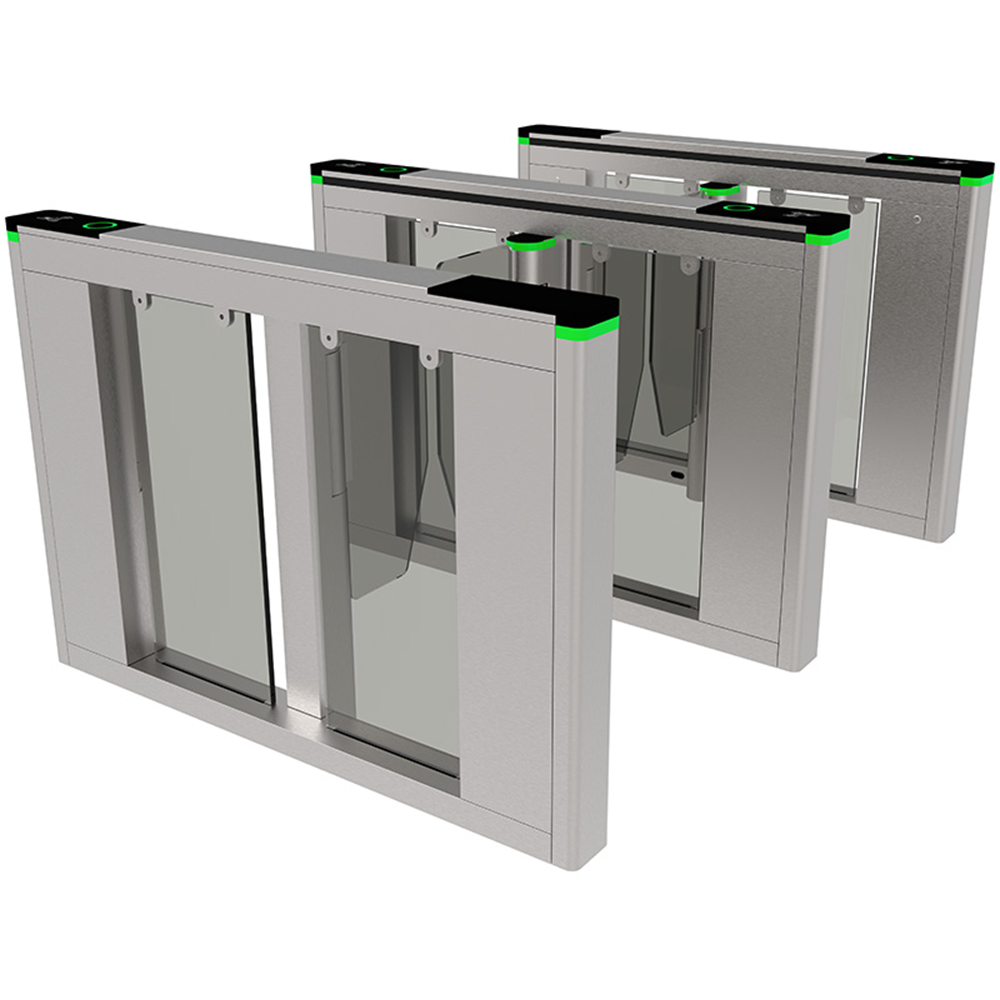

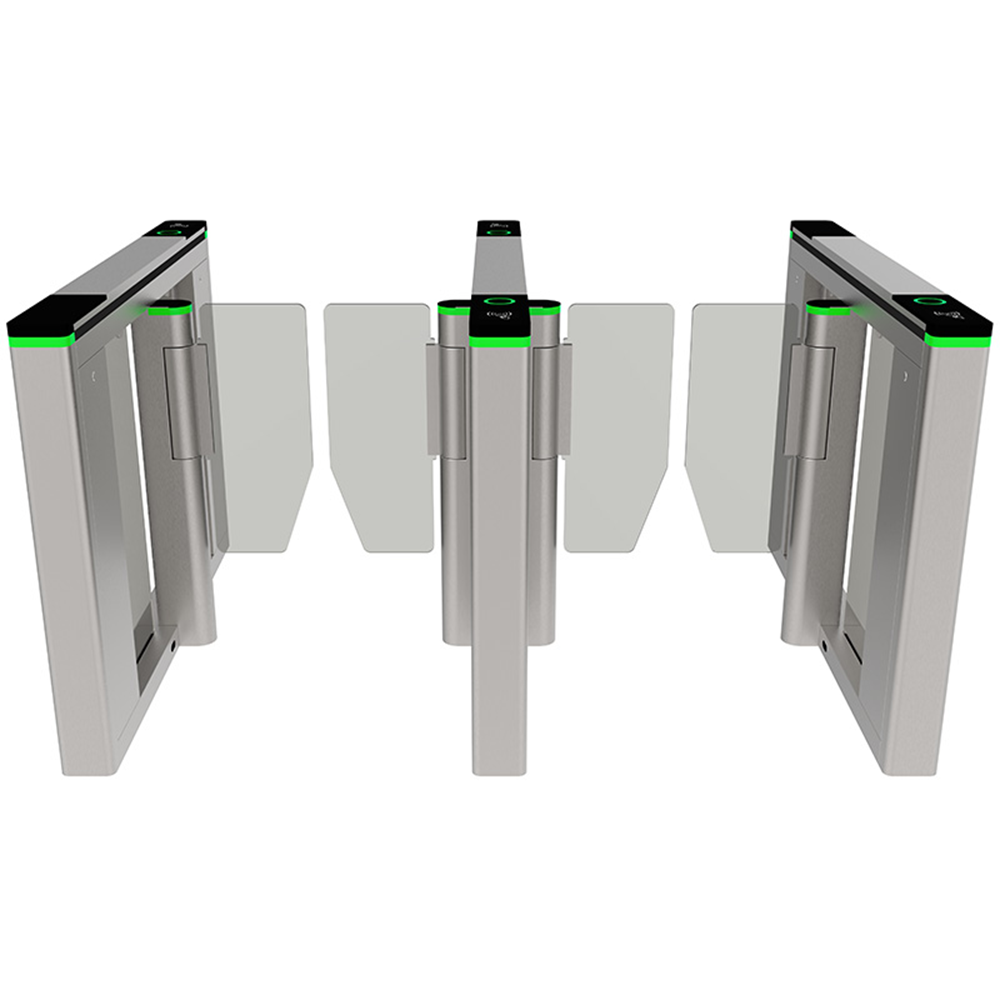

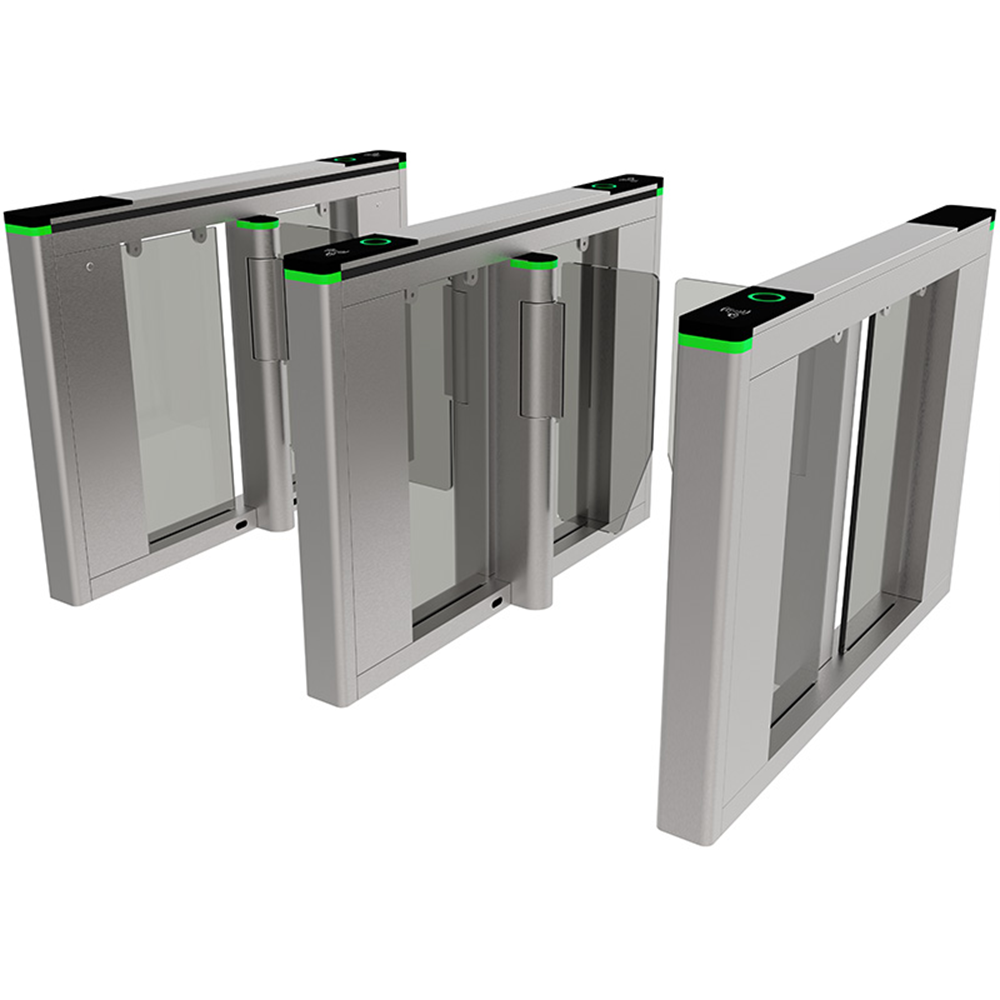

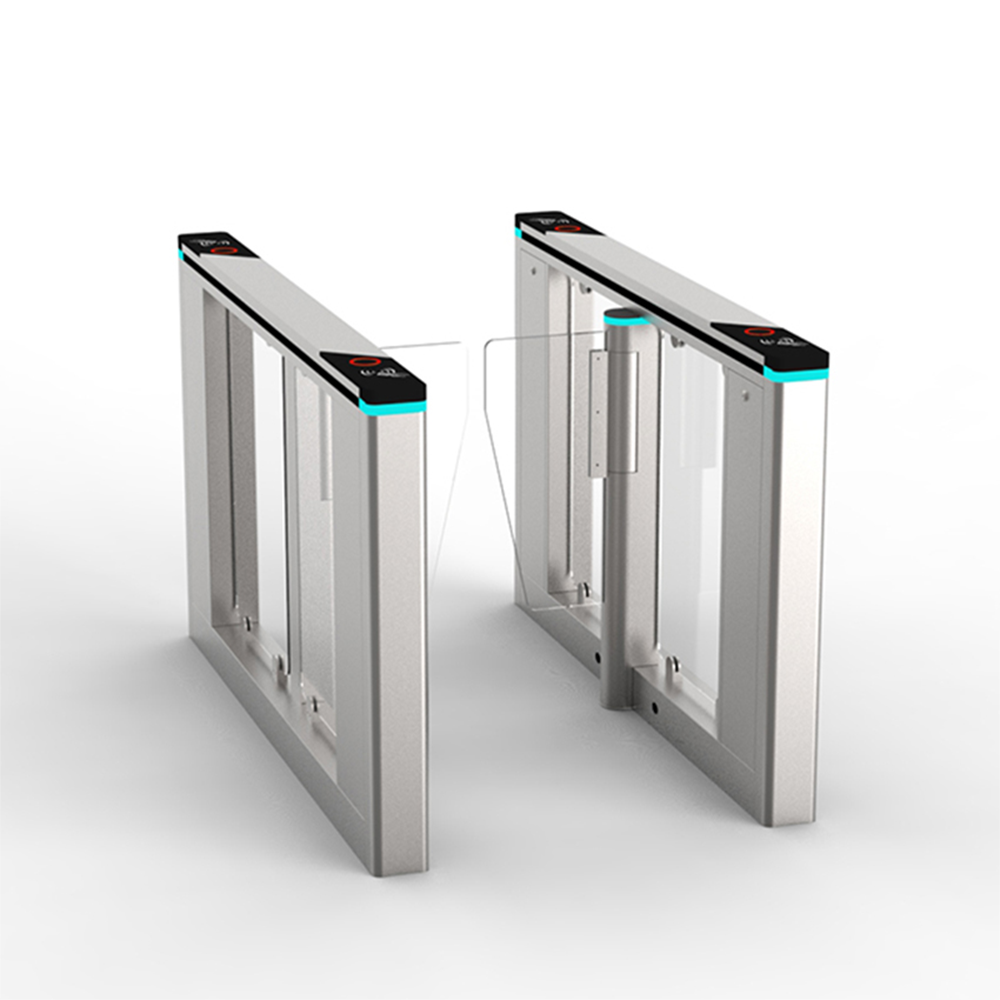

Access Control Automatic Swing Barrier Turnstile Gate

Technical Parameter:

Size: 1400*130*980 mm (can be customized)
Lane Width: 600 mm (Standard) 900 mm( Handicapped)
Arm Material: Acrylic
Passing speed: 40 person/min
Power supply: 110V/220V 50/60Hz
Brushless motor
Gate Open Signal: Dry Contact/ Relay
Driving Motor: 24V
Weight: 70 kg/pcs
In the Anti-hit mechanism, automatically reset when encountering force impact
Casing Material: 304 stainless steel
Reliability of the mechanism: 3 million, no-fault
LED lights on arms are available
The standard side panel is glass
LED on the sideboard is optional,
Working Direction: Bidirectional/Single directional
Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
Humidity: ≤90%
Communication distance: ≤1200 m
Communication interface: RS485
Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
Time needed for opening: 0.2 s
Working Environment: Indoors
Application range: Community, Factory, Construction site, School, Place of the resort, etc

FEATURES

Modular reader panel – in-time market response
Servomotor – faster opening speed
10 Pairs of infrared sensors for stronger tailgate detection
SUS304 stainless steel casing
Higher durability for longer product life cycle
Easy switch, easy installation – RFID, fingerprint, face, etc.
Bi-directional operation control
LED passage indicator in both directions
Convenient installation and maintenance
Various optional panels
Emergency mode allows free access in power failures or emergency

Performance

In order to improve the efficiency of pedestrian access management and user experience, we adopted a new type of servomotor which makes the speed gates have a faster opening speed and lower noise. The test results show that the opening speed is less than 1.2 seconds with the stand barrier panels if assembled the mid-height barrier panels instead, opening speed will be less than 0.8 seconds. The infrared sensors have increased to 10 pairs, which is 160% more than other similar products in order to provide more accurate logical judgment.

Quality
The casing is mostly made of superior SS304 stainless steel for its remarkably high durability. The barrier panels are made of acrylic and have better aging resistance and impact resistance. From raw material procurement to production, strict quality control and inspection system will be applied.
