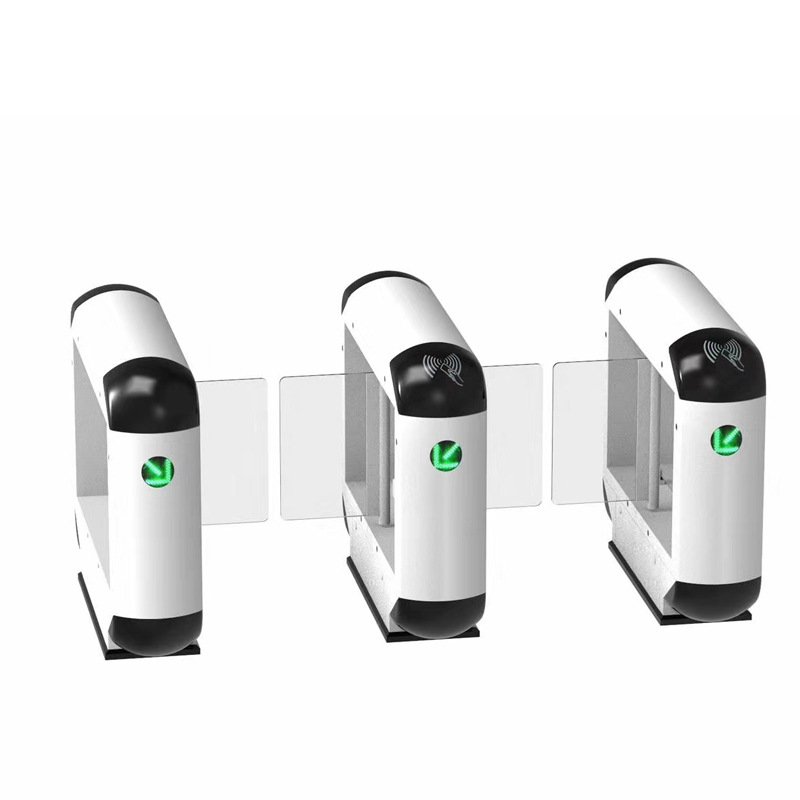

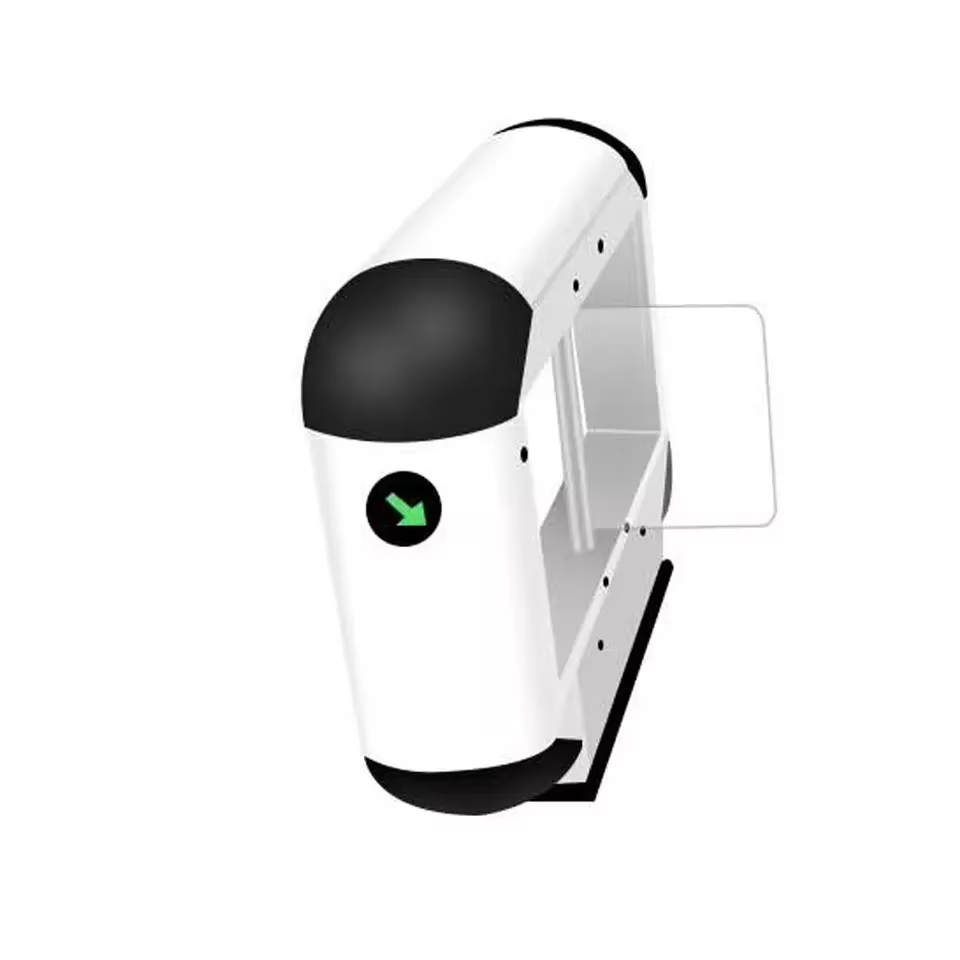

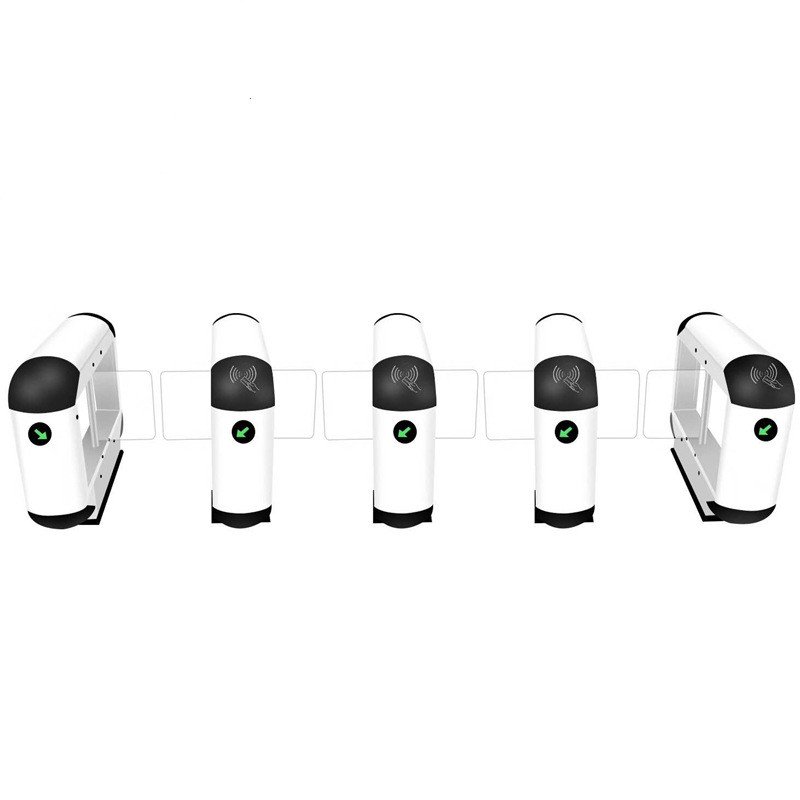

Amusement Park Customized Swing Turnstile Gate

Product Details:

Elevate the fun and safety of your indoor playground with our innovative Turnstile. Engineered for smooth operation, the turnstile ensures efficient entry management. Its robust construction guarantees long-lasting durability, enhancing security for both staff and young patrons. The child-friendly design adds a touch of whimsy to the experience, transforming routine entry into an exciting adventure. With customizable integration options, our turnstile effortlessly blends into your indoor playground’s aesthetic, offering a perfect balance of form and function. Welcome to a new era of secure and joyful play!

Technical  Parameter:

1.Size: 1200*280*900 mm (can be customized)
2. Lane width: 600-800 mm (can be customized)
3. Passing speed: 30 person/min
4. Power supply: 110V/220V 50/60Hz
5. Weight: 55 kg
6. Input: Dry Contact
7.  24V solenoid
8. Casing Material: SPCC+Epoxy resin electrostatic spraying
9. Reliability of the mechanism: 5 million, no-fault
10. Operation way: semi-automatic
11. Solenoid valve: DC24V ±5％
12. Arm Length: 510 mm
13. Direction of rotation: Bidirectional/Single directional
14. Emergency: The arm drops automatically when the electricity is cut off.
15. Operational voltage: DC 24V ±5%
16. Voltage of indicator light: DC12V ±5％(standard)
17. Working temperature: -30℃～60℃
18. Humidity: 5%～90%
19. Waterproof: IP43
20. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
21. Time needed for opening: 0.2 s
22. Working environment: Indoor or outdoor
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc

Main Features

1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after adefault delay, the force 2Kg.
3. Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7. Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is10s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs
10. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator
