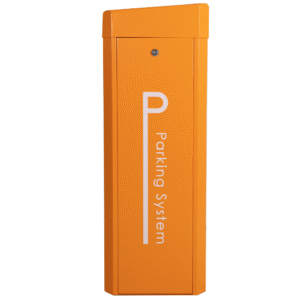

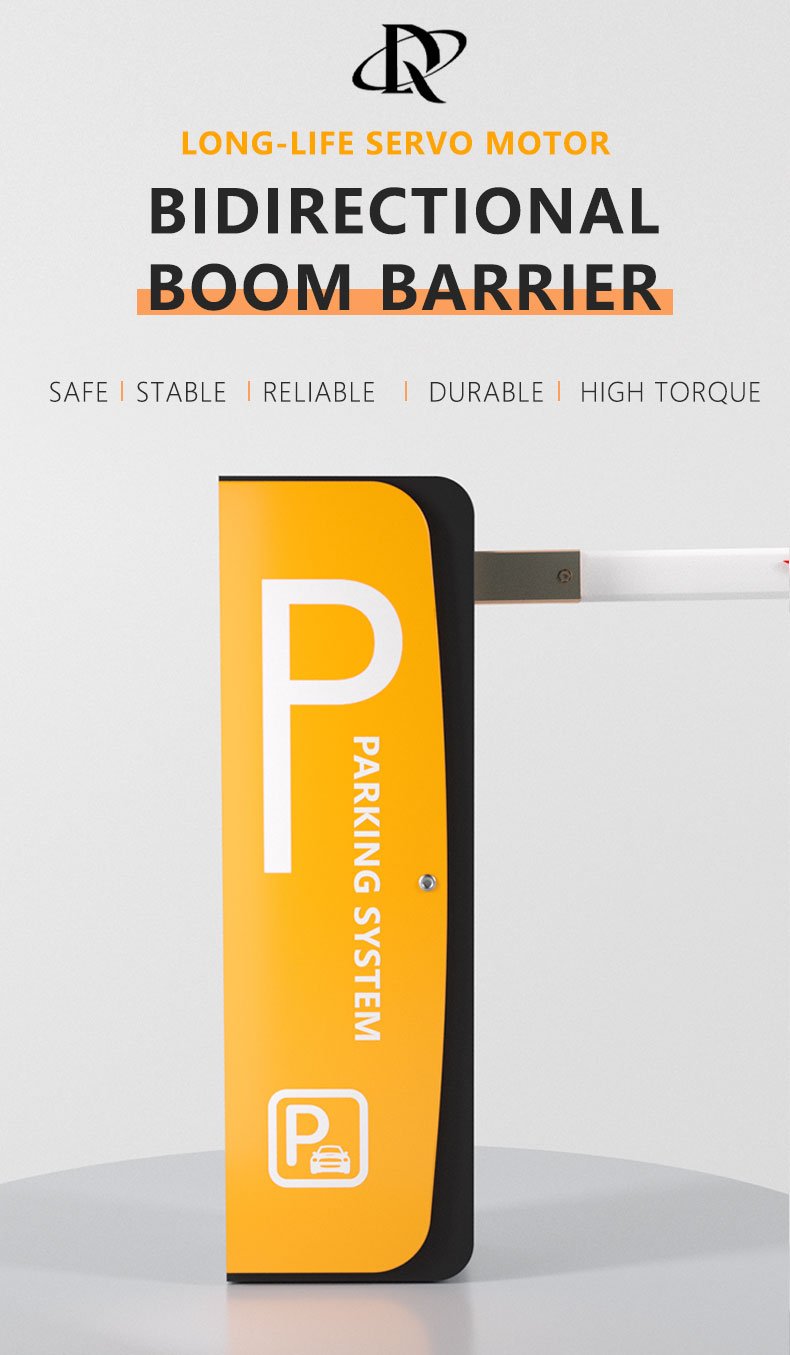

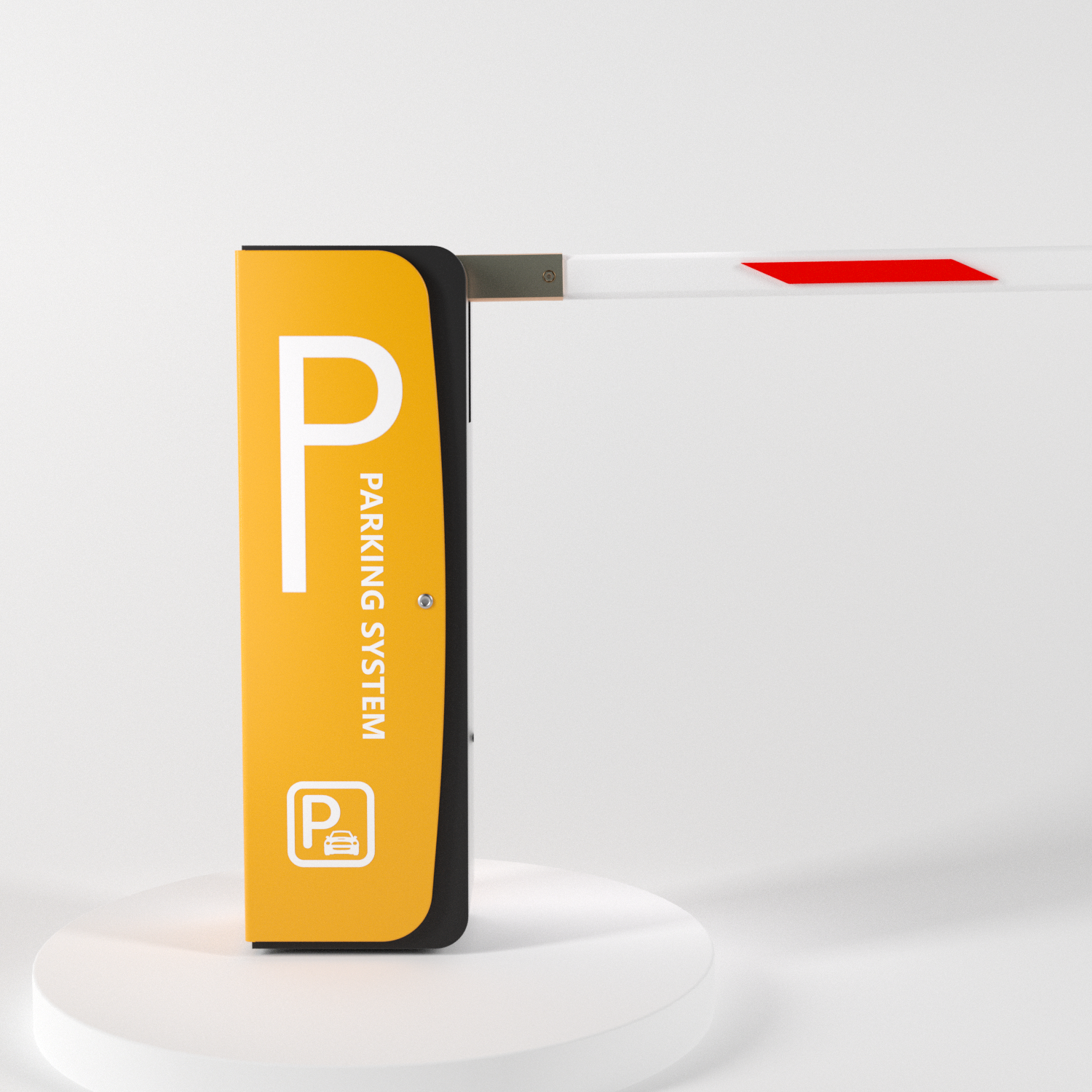

Bidirectional Boom Barrier

Features

  • High torque bi-direction Servo Motor for heavy and continuous work.
  • Available in different size variance namely, 3m, 4.5m & 6m
  • Robust housing incorporating the working links for boom barrier working.
  • Regulates pedestrian and vehicle traffic with hassle free operation.
  • Resting stand as per the client’s requirement.
  • Manual release in case of power cut off.
  • Barrier housing made of 2 mm thick galvanized further reinforced load carrying area of motor mounting.
  • Efficient security at the exit and the entry points of factories, office complexes, corporate houses, residential Buildings, parking lots, toll tax plazas or any road.
  • Boom barriers are easy to operate through push button/remote control systems/magnetic loop detectors/ flashing lamp/ RFID access system etc.
  • Optional symbolic LED notification for easy passing access.



Technical Specification

Opening / closing times 3-6 Sec
Power consumption 150 W
Drive technology Servo Motor Drive Mechanism
Housing dimensions (W x D x H) 1010*370*300 MM
Weight 50 KG
Arm Length Upto 6M
Safety Feature Photocell, Magnetic Loop
Color Customization
