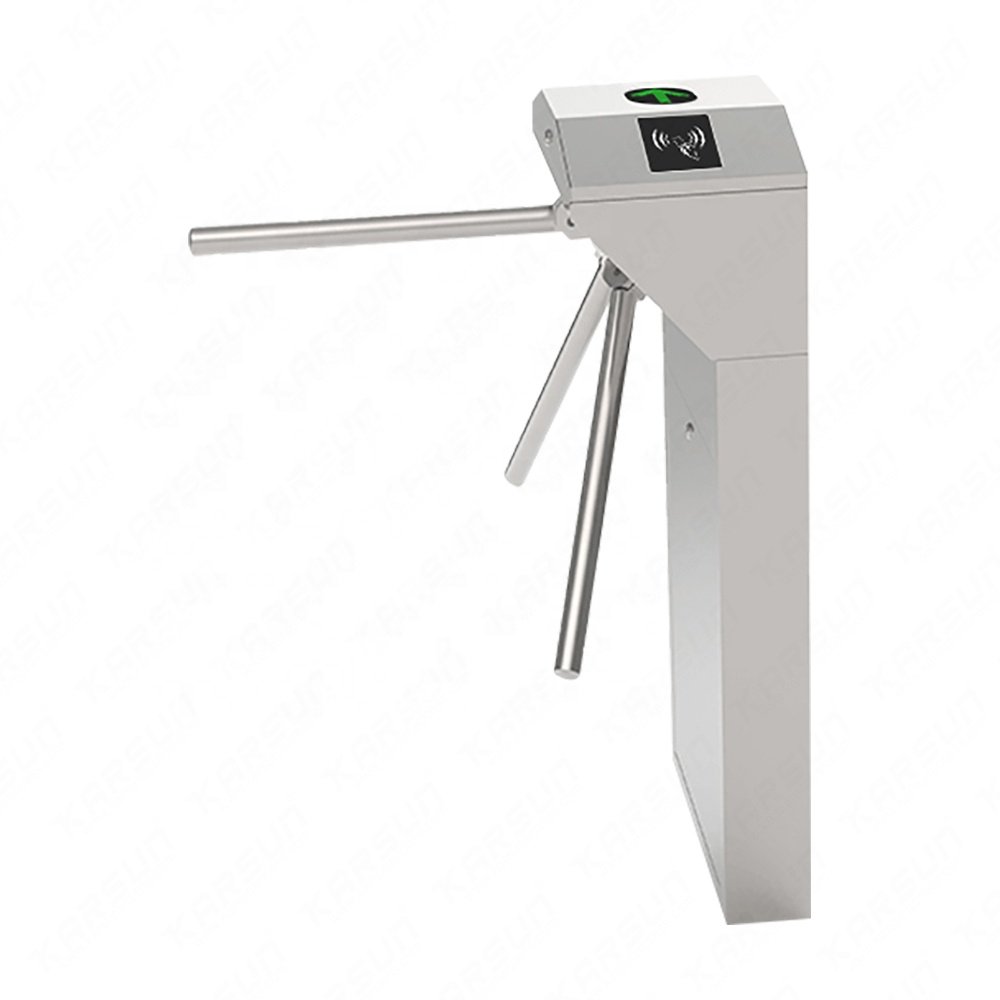

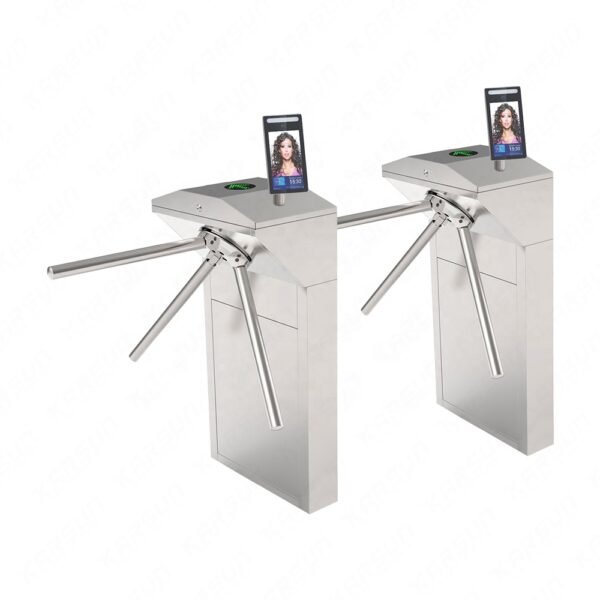

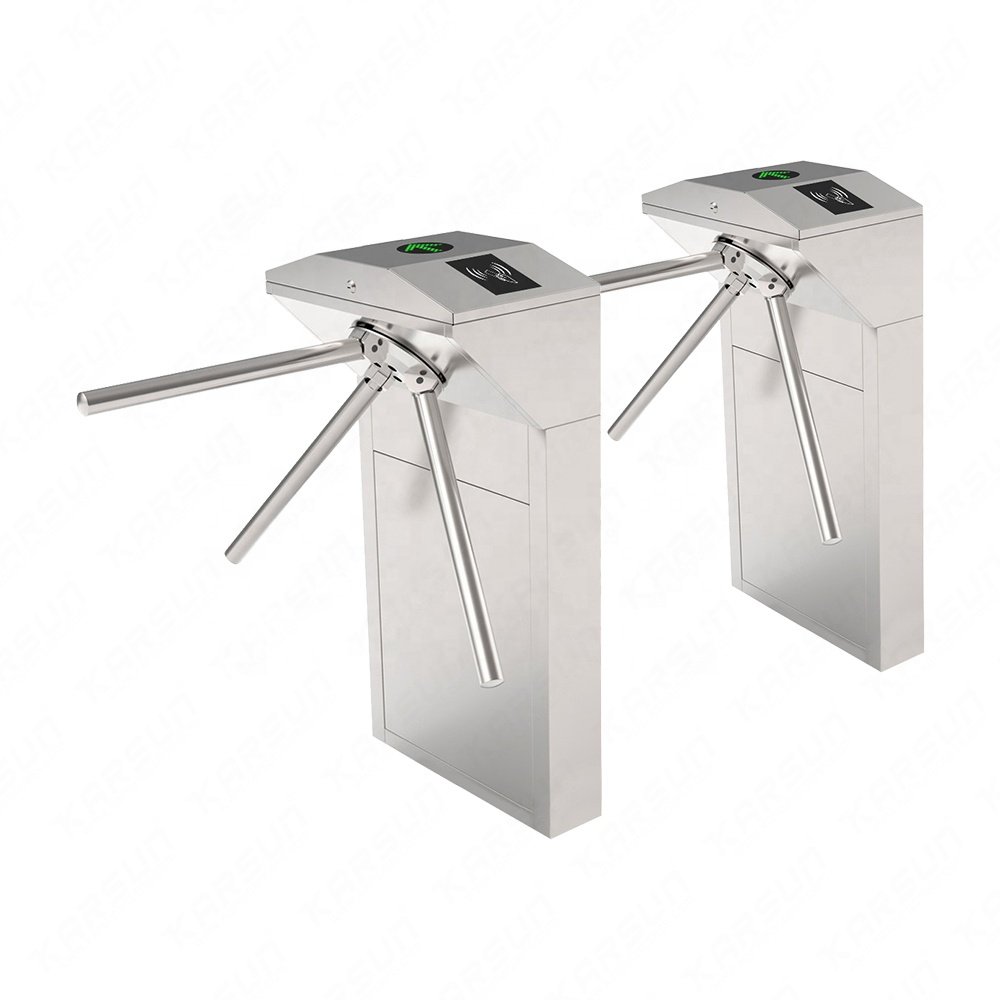

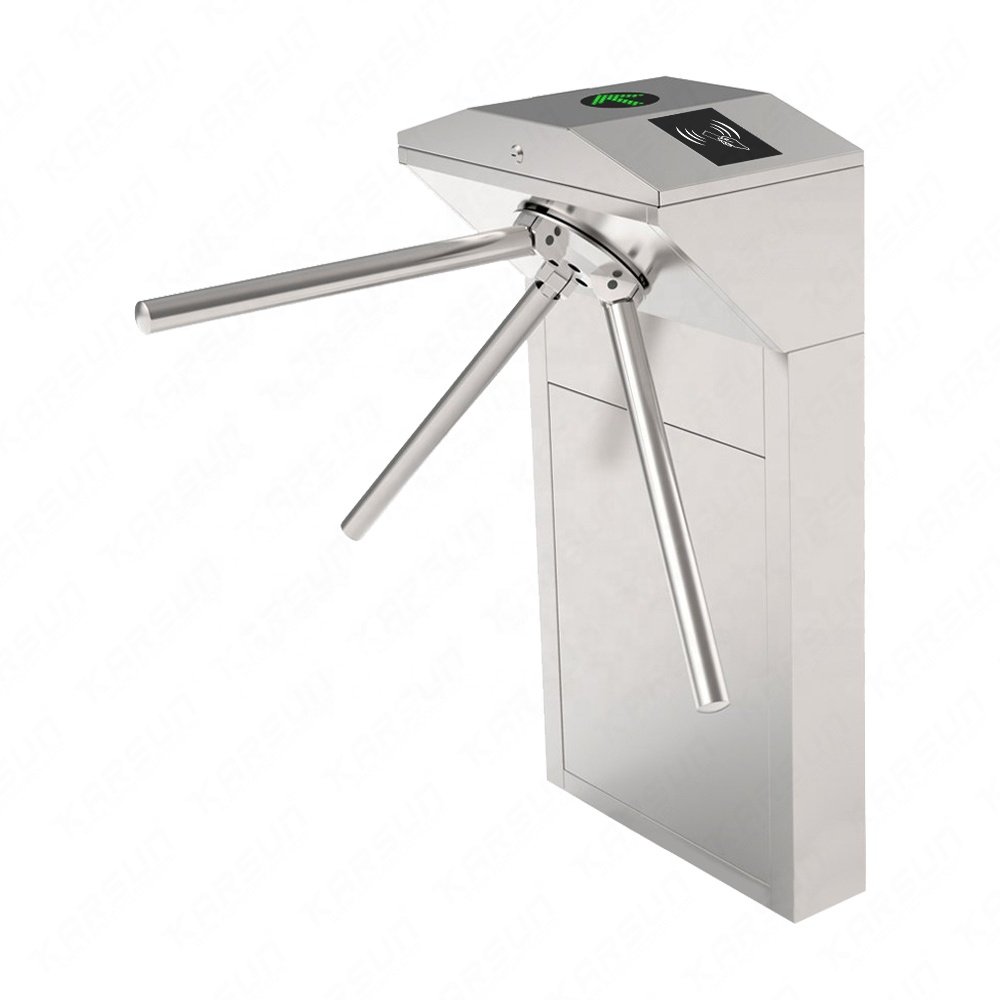

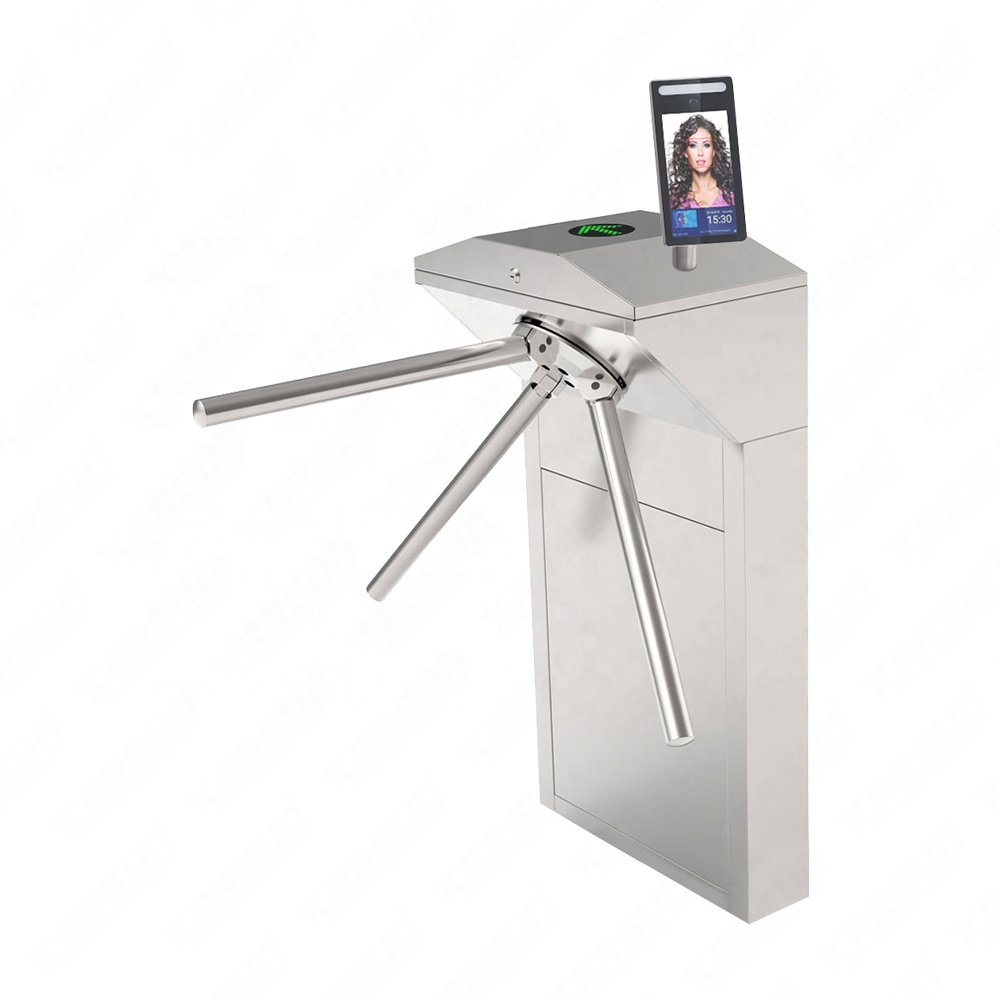

Face RFID Access Control Tripod Turnstile

Operation:

  • Access Control: Integrated with access control systems such as RFID card readers, barcode scanners, or biometric systems.
  • Authentication:Users must present a valid credential to unlock the turnstile arms and gain access.
  • Automatic Reset:After a person passes through, the arms automatically rotate back to their original position to prepare for the next user.

Types:

  • Mechanical Tripod Turnstiles:Operate purely on mechanical principles, relying on physical rotation and locking mechanisms.
  • Motorized Tripod Turnstiles:Enhanced versions that use motors for smoother operation and faster throughput.

Advantages:

  • Security: Controls access effectively, preventing unauthorized entry.
  • Cost-Effective: Generally more affordable compared to some other types of turnstiles.
  • Reliability: Simple mechanical design results in robust and reliable operation.
Model TP3101
Size 420*330*980mm
Material SS 304
Pass Width 550mm
Passage direction Single directional/Bi-directional
Pass rate 30-35 persons/minute
Operating time 0.2 seconds
Power input AC100-240V,50/60HZ
Working temperature -40℃~+70℃
Communication interface RS485, Dry contact
Mechanism Solenoid lock
MCBF 5,000,000 Cycles
Application Bus, Station,factories,Toilets, Library,etc
