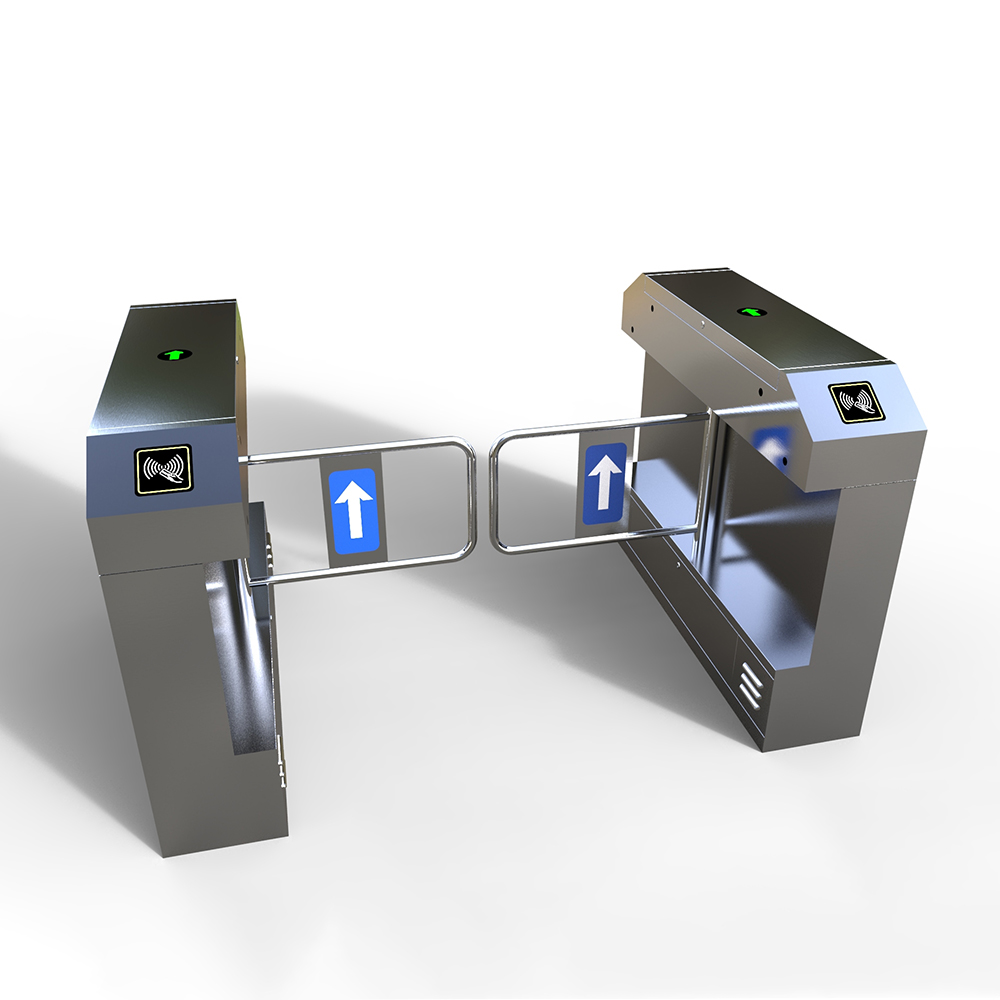

Fingerprint Recognition Reader Swing Bbarrier Gate

Product Parameter (Specification)

	Standard	Optional
Turnstile Type	Swing Gate Turnstile	–
Dimension	12002801000mm (LWH)	Customized
Material	304 Stainless Steel	316 Stainless Steel
Channel Width	600mm	900mm /Customized
Drive Type	Brush motor	Brushless/Servo motor
Unlock time	0.2S	–
Direction	Single / Bidirectional	–
Power Supply	AC110-230,50/60Hz	–
Operation Voltage	DC24V,3A	–
Working environment	Indoor & outdoor	–
Working Temperature	-70 C -15 C	–
Relative Humidity	Less Than 95%, No Condensation	–
Pass Speed	35 person/Minute	–
Input Interface	Dry contact/Relay Signal	–
Communication Interface	RS485/TCPIP	–
LED Indicator	Yes	–
Emergency	Open Automatic	–
Waterproof	IP67	–
Access Control	Can be integrated with any kind of access control system.	–

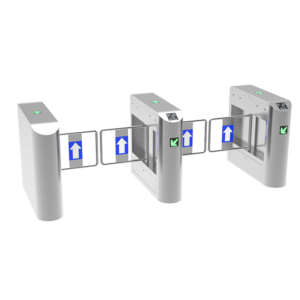

TP 3301 swing gate turnstile

Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
The width of the channel can be customized according to project requirements
It can satisfy both pedestrian passage and bicycle passage
The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
Equipment With Traffic Indicator
Equipment With Automatic Protection, Automatic Reset
Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
TP 3301swing gate turnstile widely used in entry of the apartment,entry of the industrial park and other places, can be easily integrated with your existing control software.
