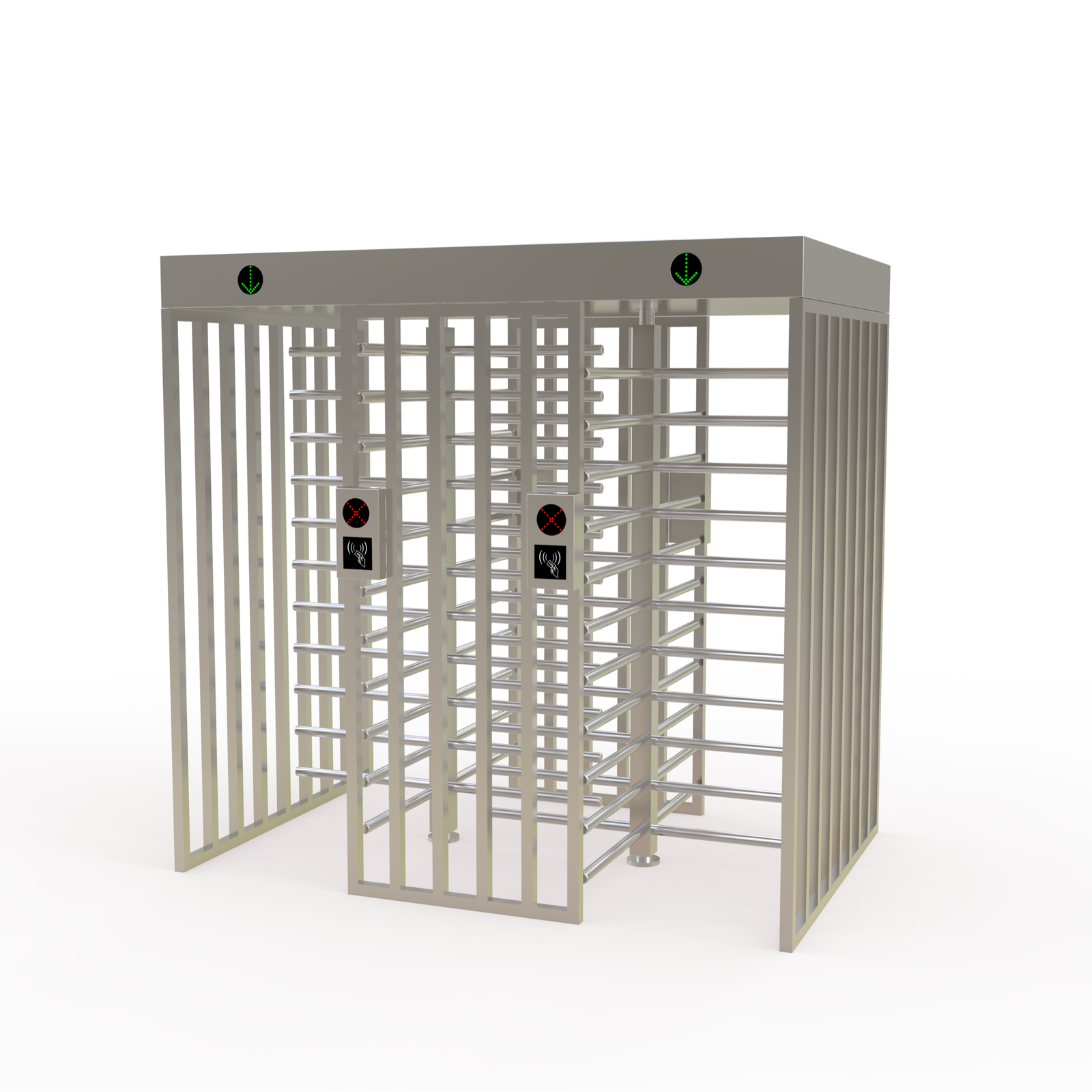

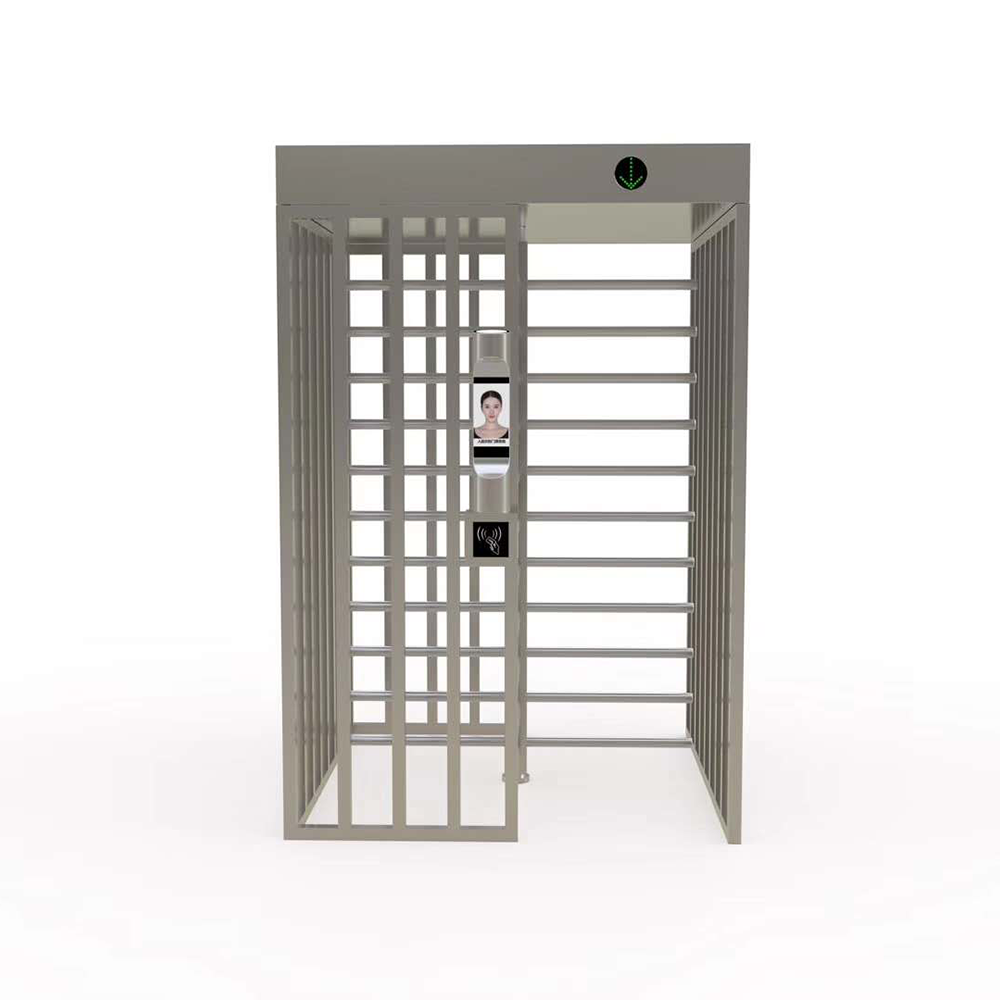

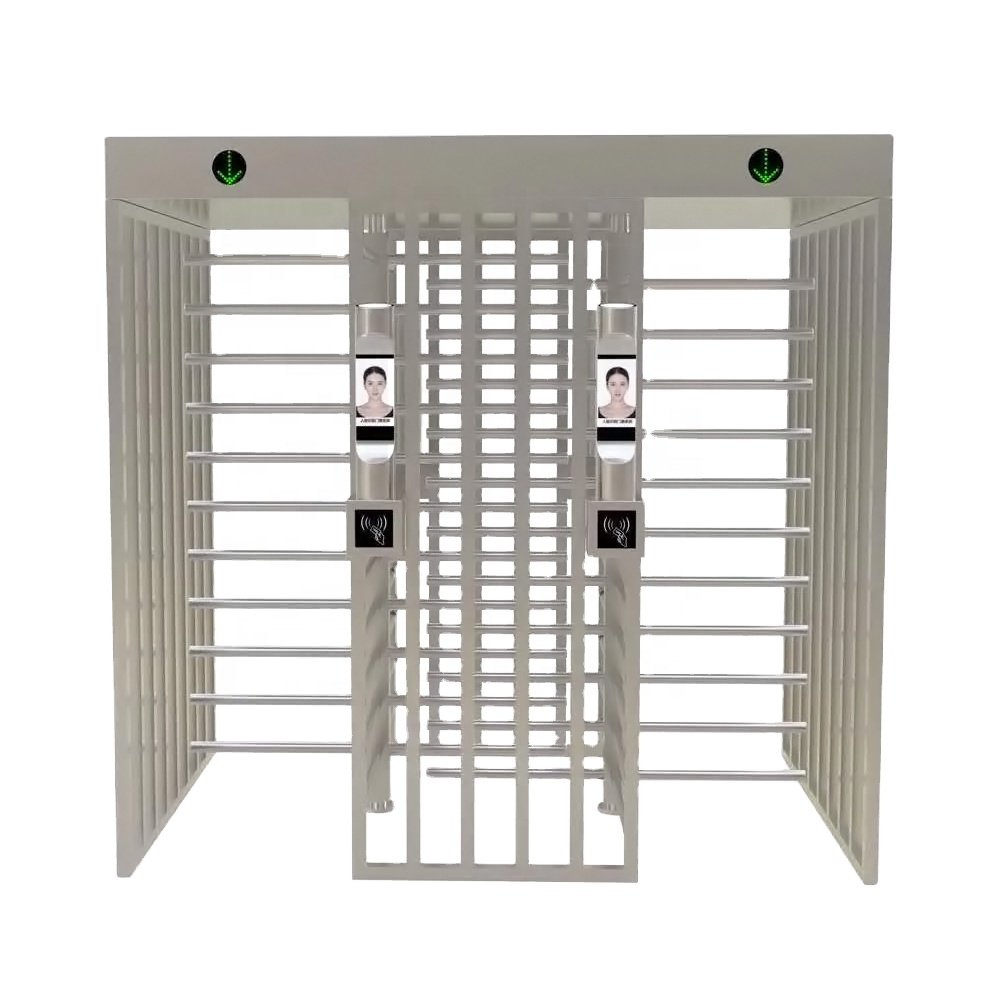

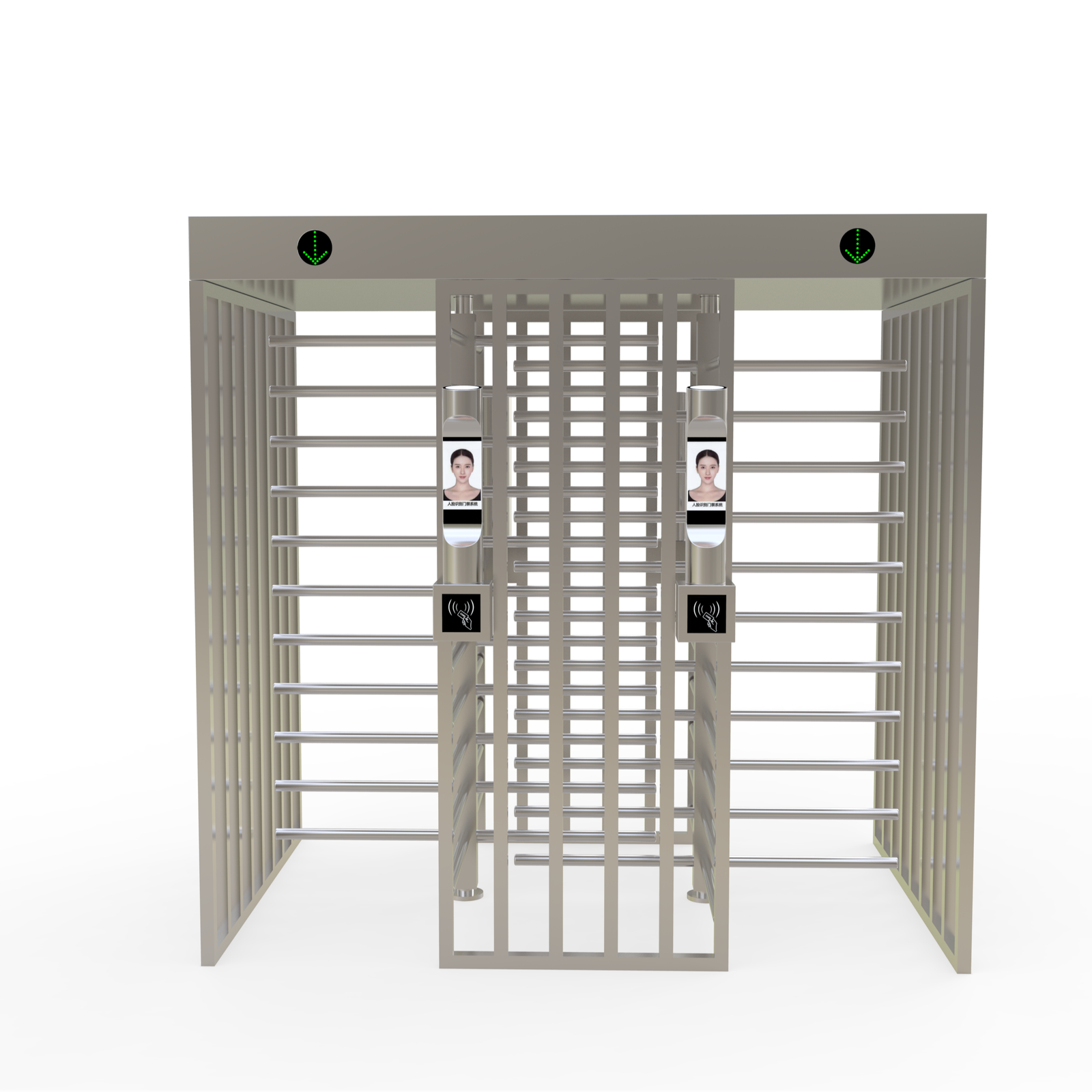

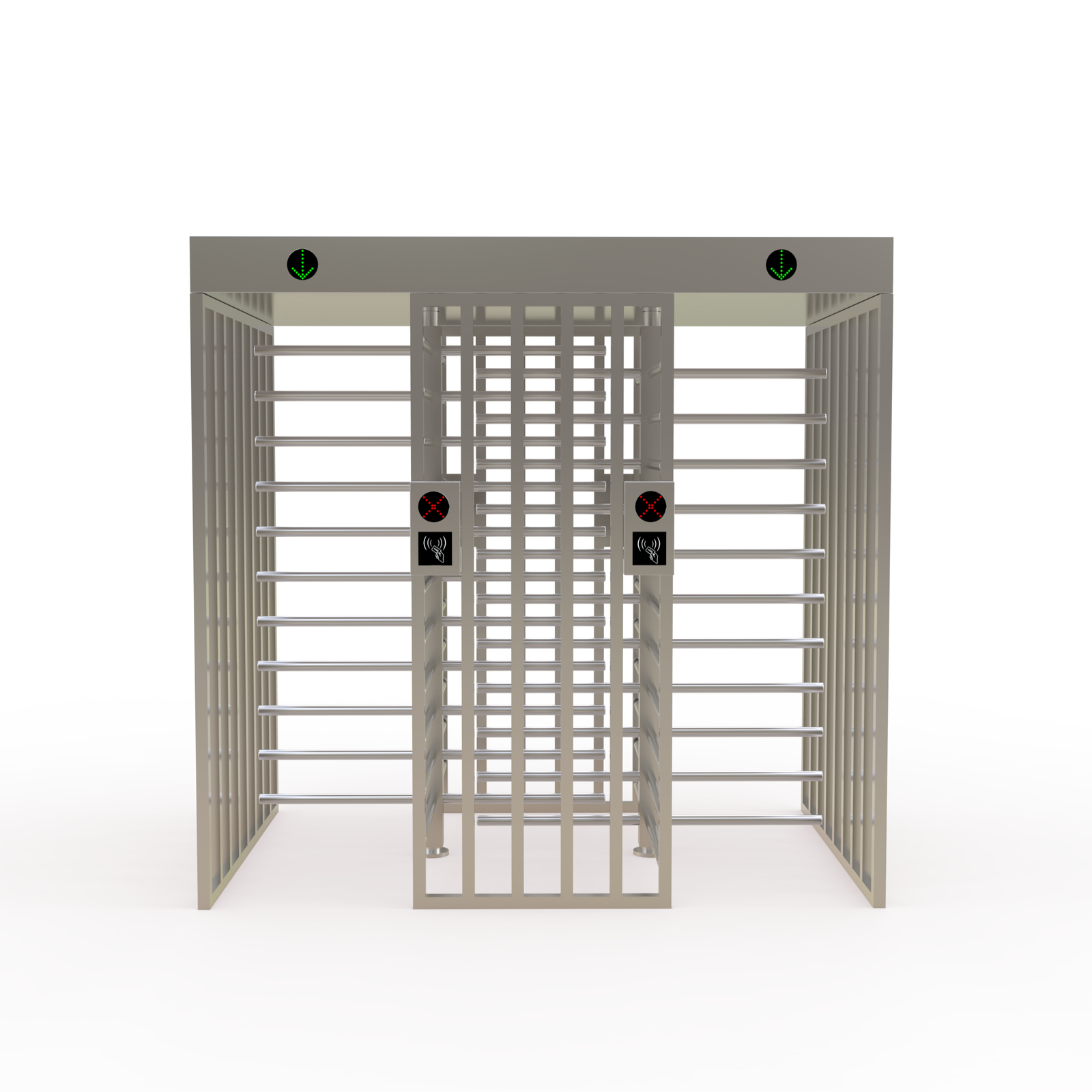

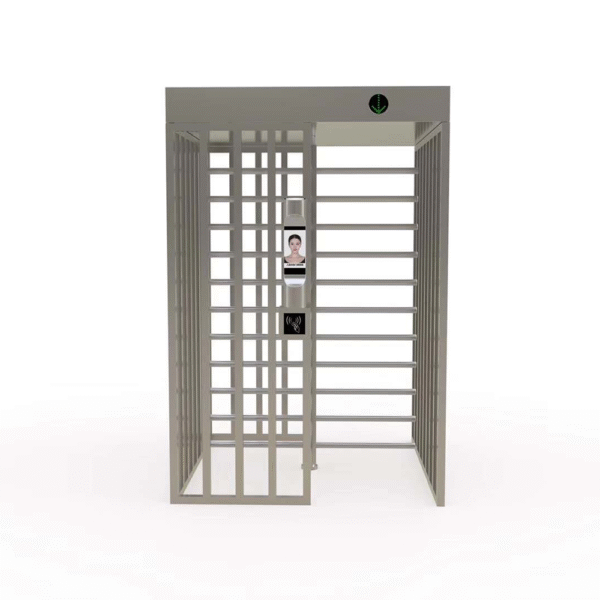

High Quality Full Height Turnstiles

This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .

Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.

Specifications:

• Model No.: TP-3706
• Power supply: AC220/110V±10%, 50/60HZ
• Temperature: -45°C—75°C
• Humidity: <95%, without concretion
• Passage width: <=600mm
• Passing speed: 40 persons/min
• Power consumption: 100W
• Input interface: +12V electrical signal or impulse signal
• Width: more than 100ms
• Drive current: >10mA
• Communication interface: RS485 (distance:<=1200m)
• Material: 304 stainless steel
• Dimension: 1460*1600*2300 mm
• Communication connection: RS485 communication interface or TCP/IP interface
• Protection grade: IP44

Features:

• Automatically low noise mechanism core equipped, highly cost-performance
• Sense positioning, reducing mechanical impact make lifetime longer
• Operating efficiency, 1~2 seconds open & close
• Lowest Noise : No matter in operating or outside control, Noise control under 30db
• Self-checking and Alarm warning for maintain
• Resetting: System cancel authorized pass if passenger delayed pass
• Anti-following : prevent illegal passing
• Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
• The rotary wings will be locked automatically if the system do not receive IR signal
• Multi-passage for variety application demands , cover 99% needs on earth
• Programmable signal separate control : pass time,pass speed etc. parameter
• RS232/RS485 interface meet all kind of communications or wireless connection
• Compatible IC/ID card ,flexible couple
• Long-distance management through COMPUTER
• Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm

Control System & Interfaces:

• Card readers
• Metal detection
• Electronic/LCD counters
• Fail-open or fail-secure locking
• Push-button and wireless remotes
• Manual key override both directions
• Indicator lights

Advantages of Full-Height Turnstiles:

• Patented end-point locking system prevents being locked in
• Versions with integrated bike gate, swing door for the transit of goods, emergency escape function or WK2 resistance category
• Modular system: a variety of turnstile bars, roof elements and side panels in different materials and designs can be combined
• Turnstile column and bars made of stainless steel
• Speed of rotation changes to match that of person entering
• Low energy drive system

Advantages of Full-Height Gates:

• Reliable alternative to road barriers or sliding gates
• Swift opening and closing of the door wings in the desired direction
• Available with 1 or 2 door wings (for pedestrians or transit of goods)
• Version with interlocking function
• Door wings made of sturdy stainless steel
• Modular system combinable with Kentaur turnstiles

Where Full-Height Turnstiles and Gates can be put to good use:

• Industrial plants
• Company premises
• Airport and port areas
• Power plants
• Parking sites
• Bike parks
• Prisons/correctional facilities
• Military installations
• Educational facilities

Package:

• Gross Weight: 305KG
• Package: Export packing, plywood box
