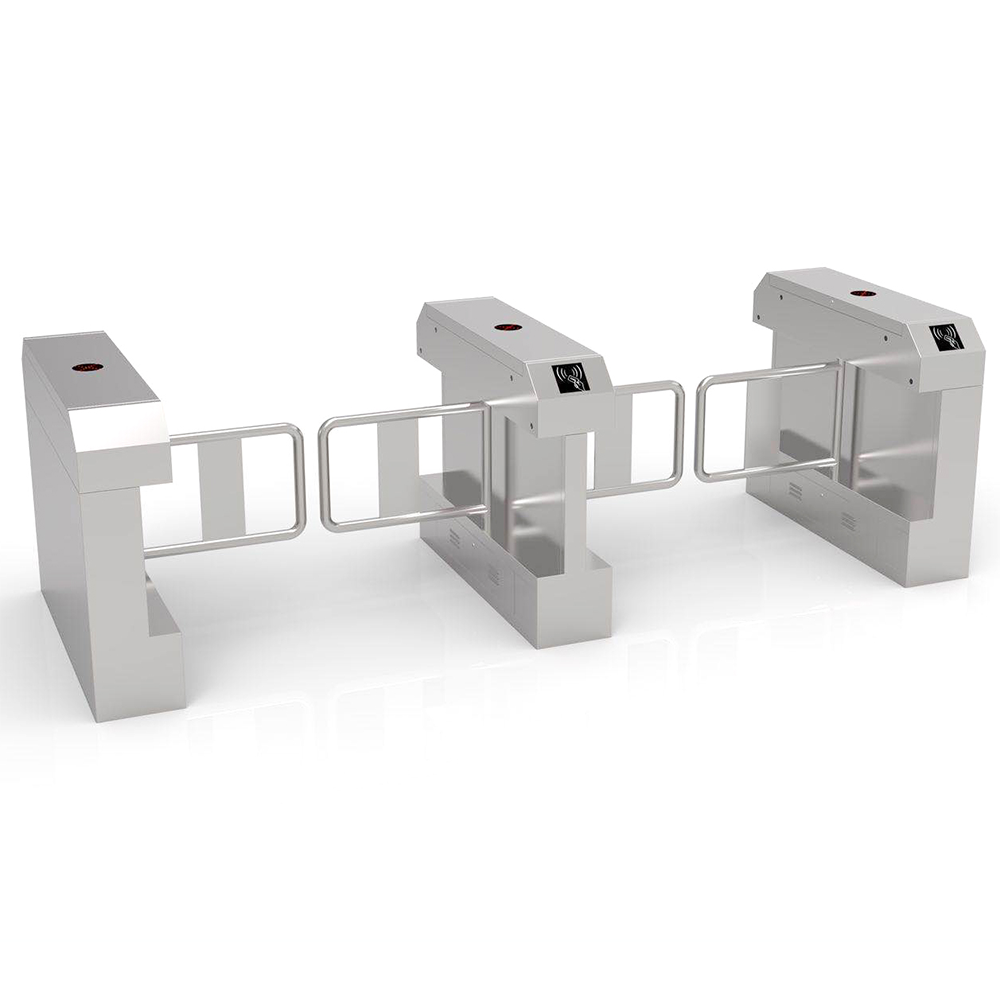

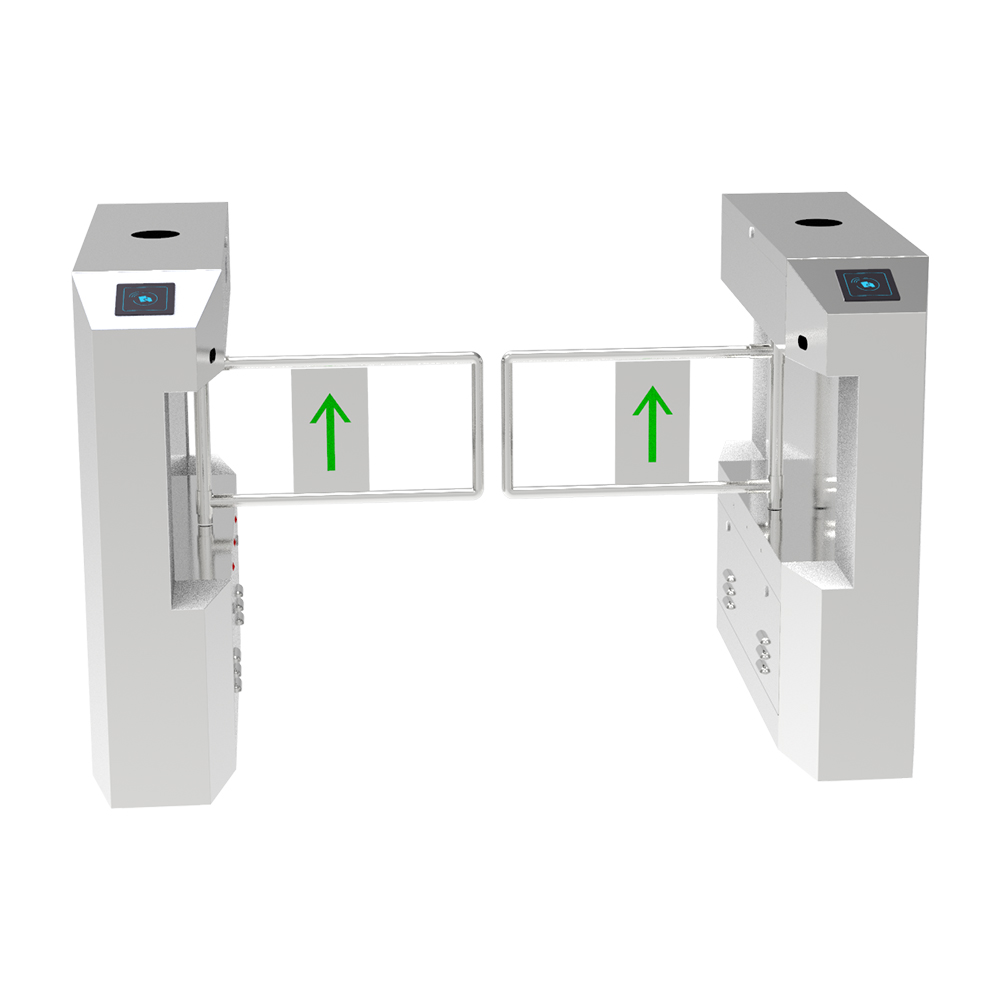

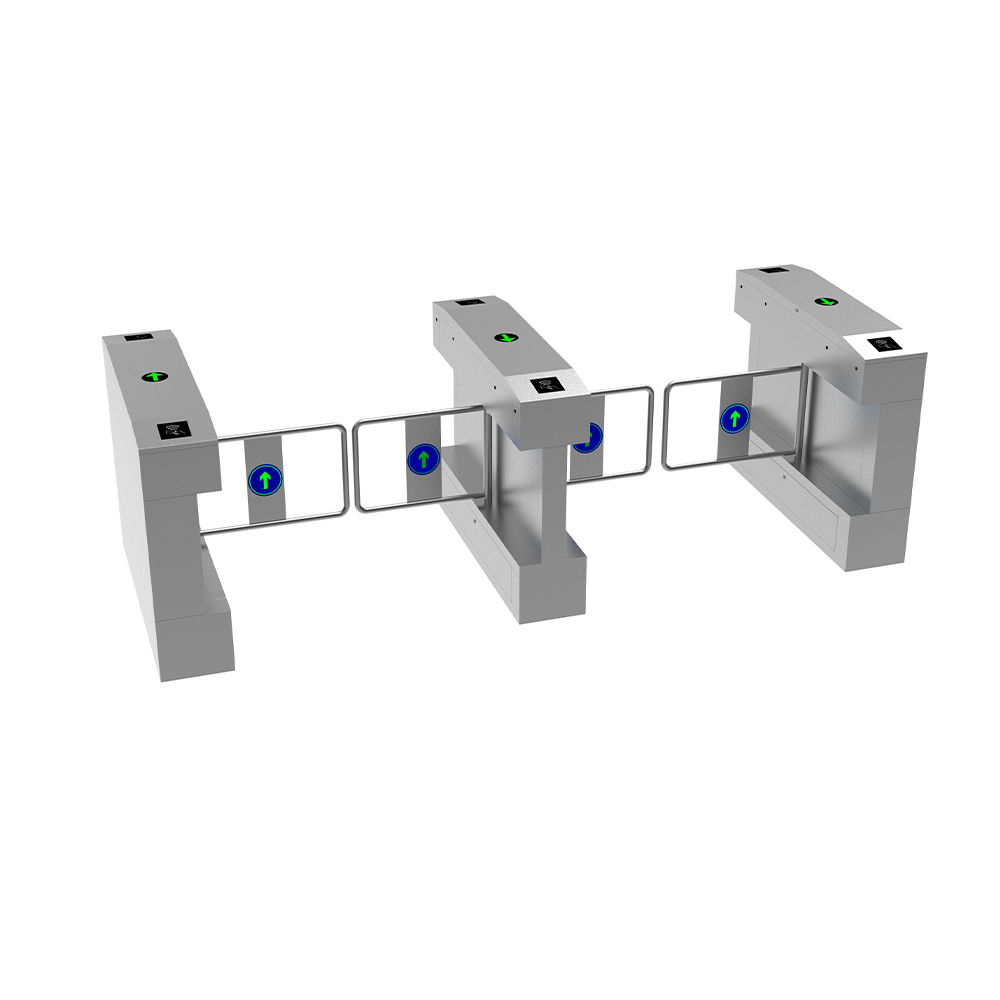

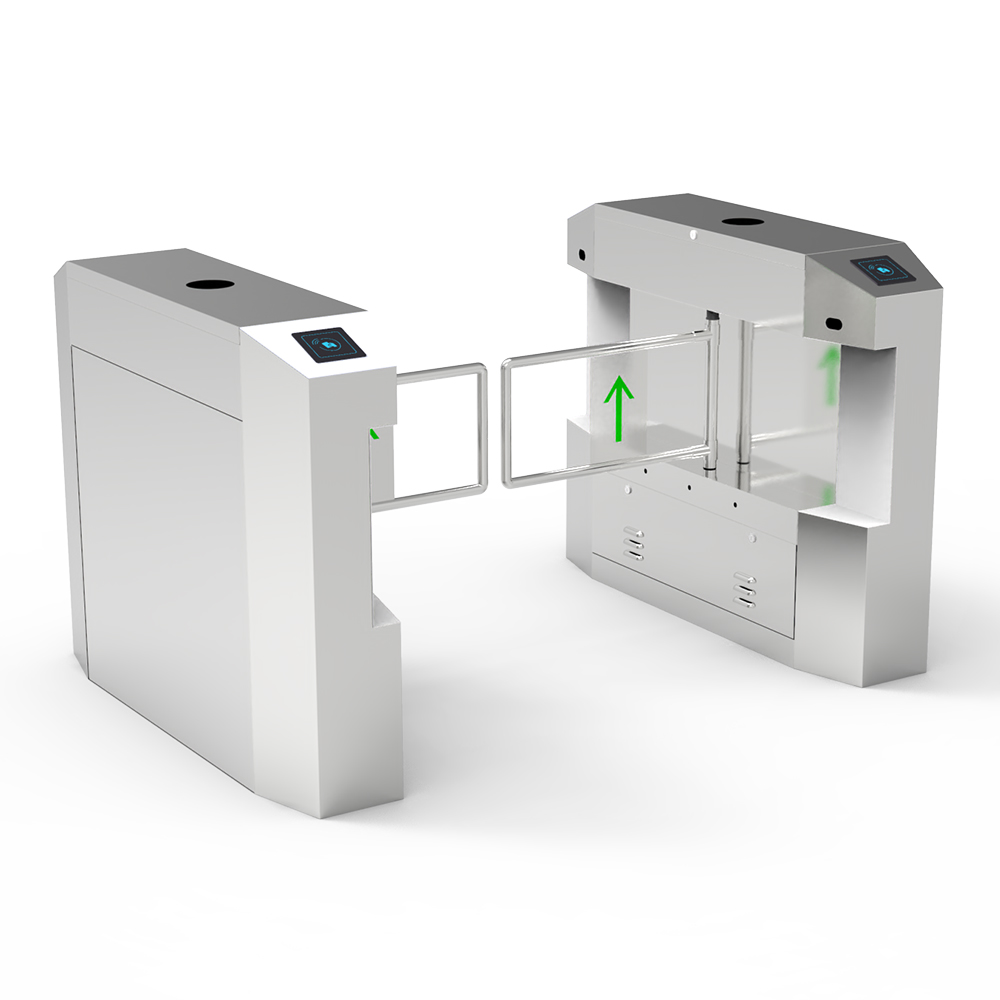

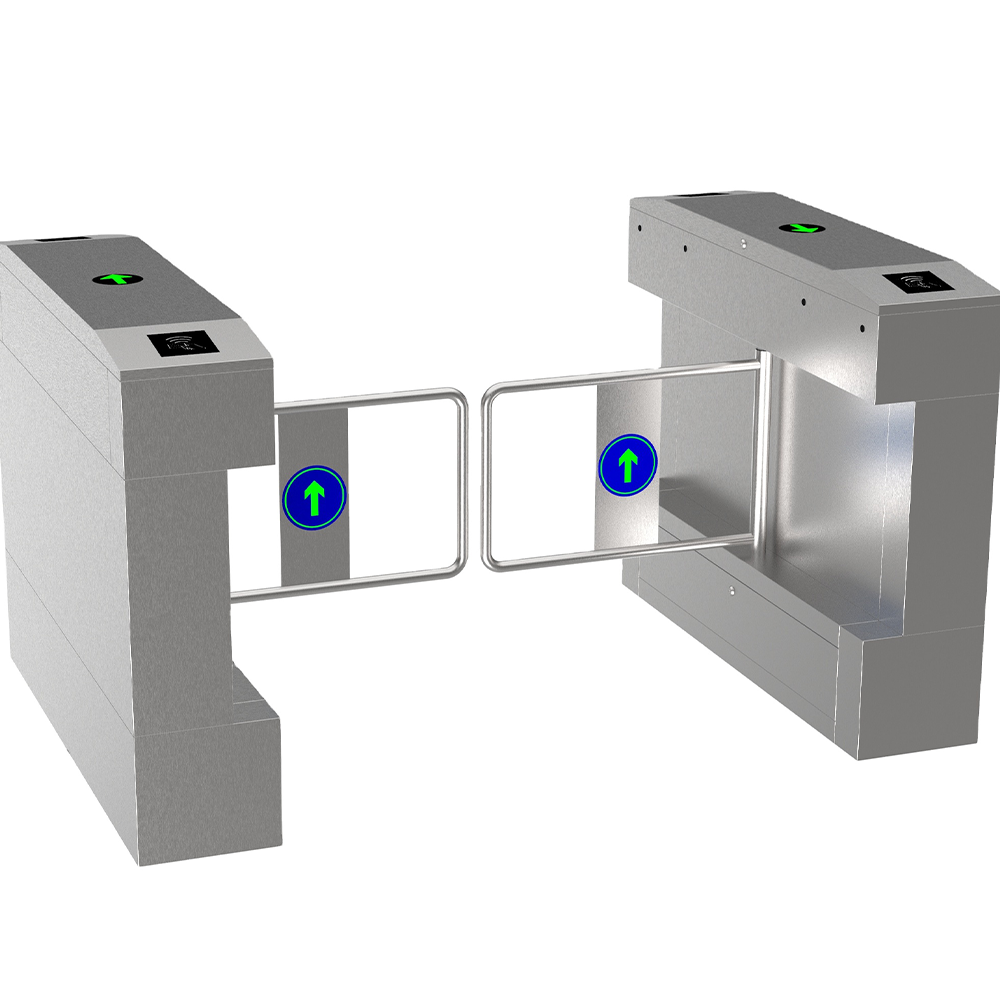

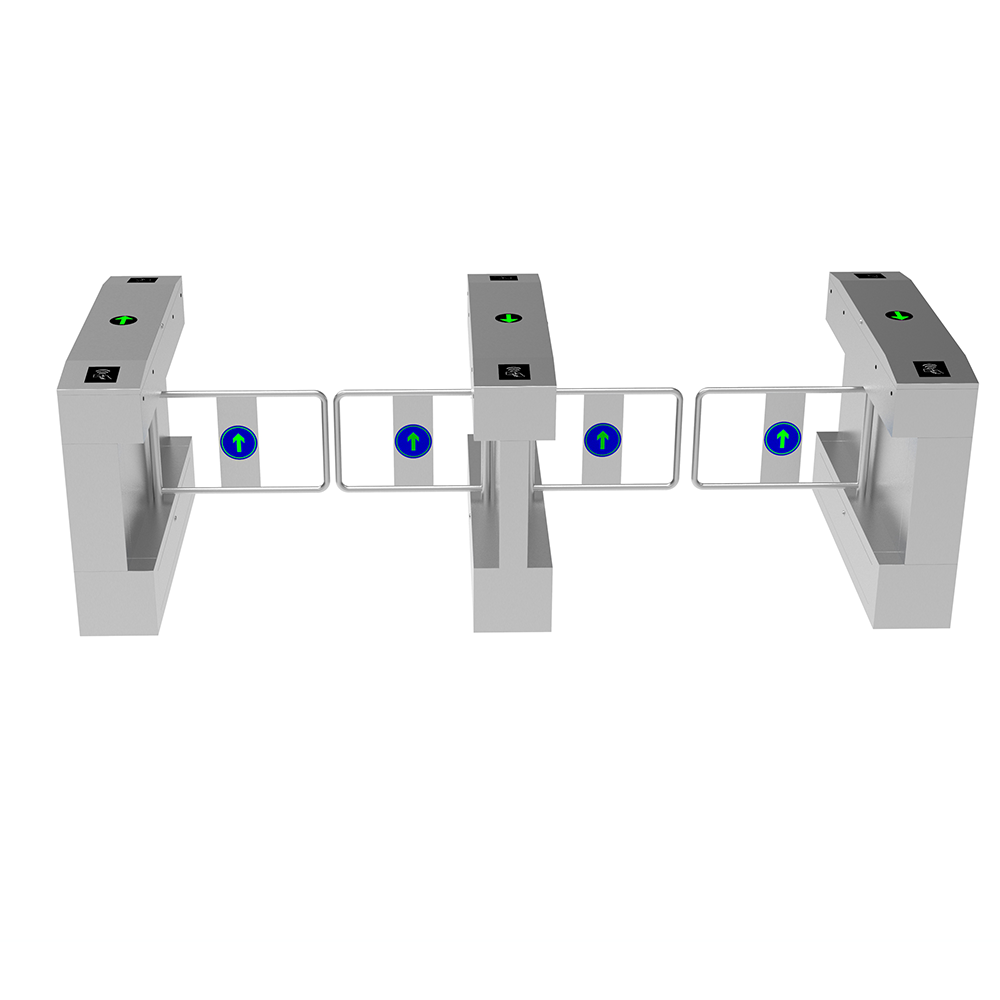

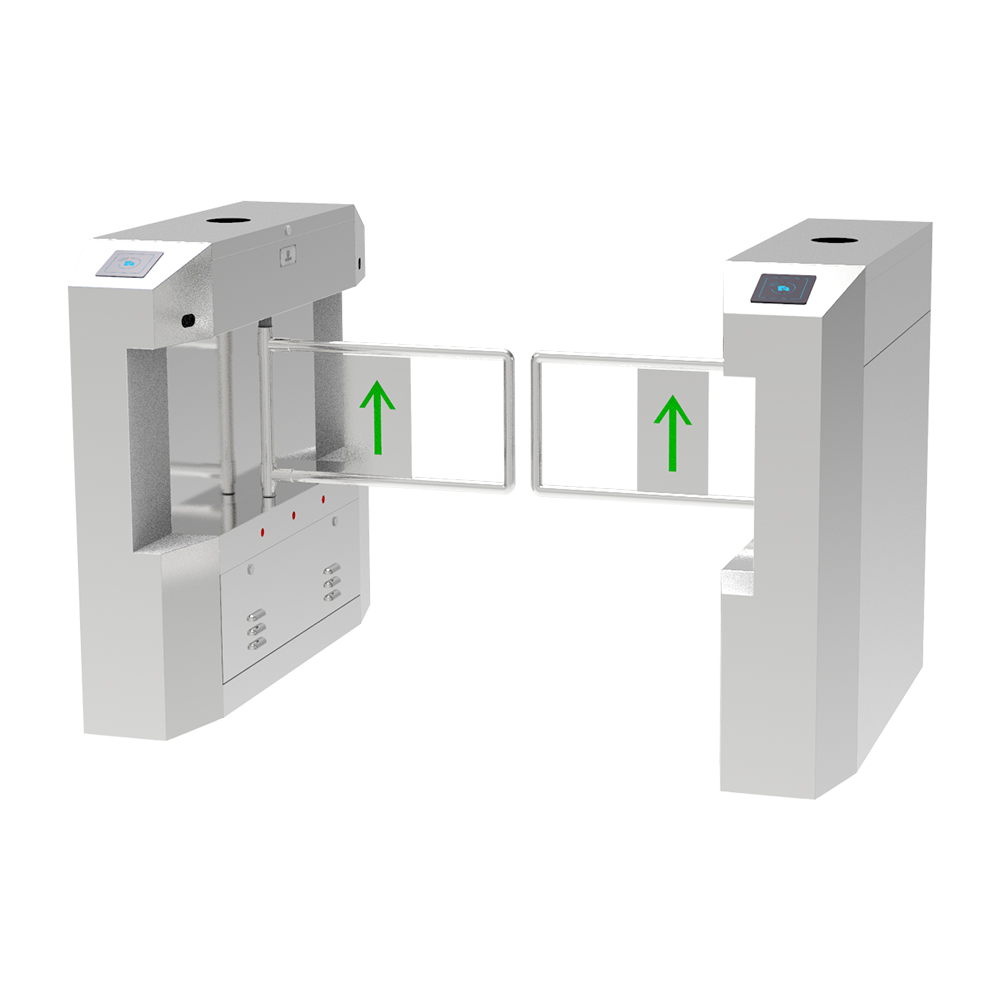

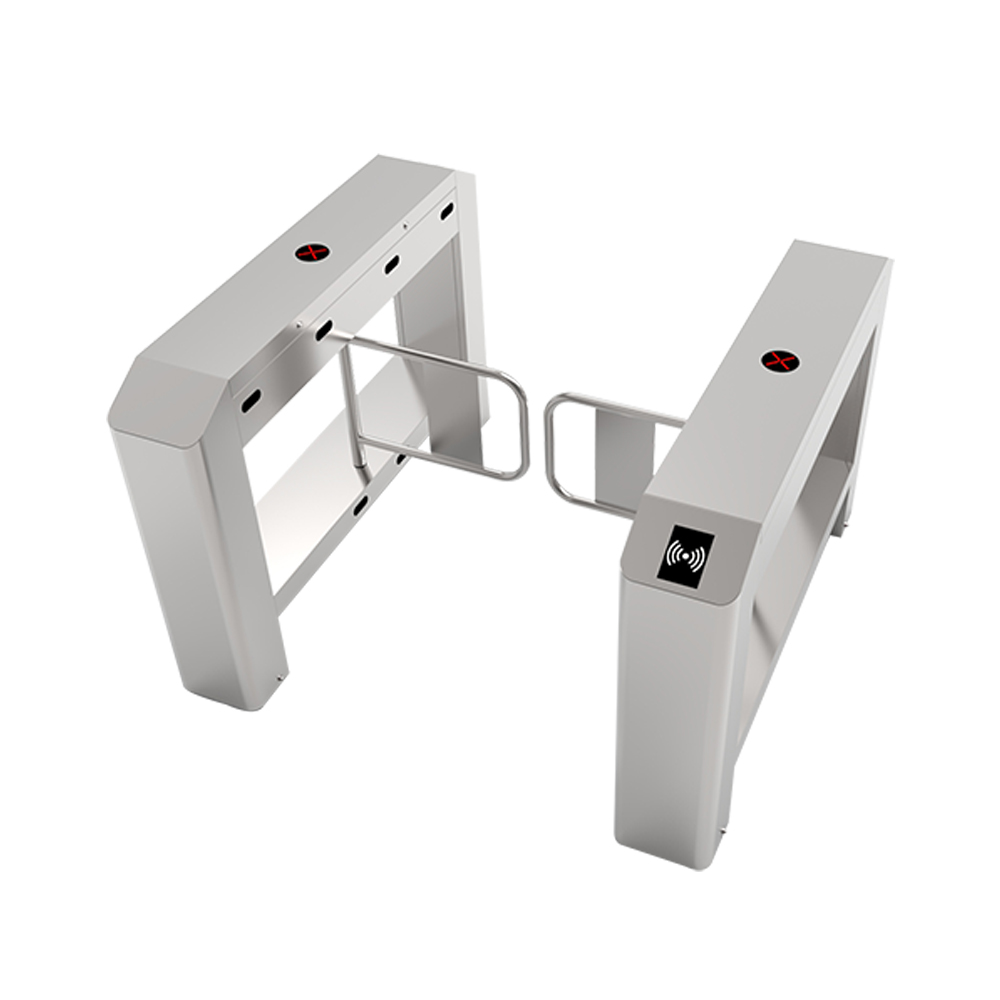

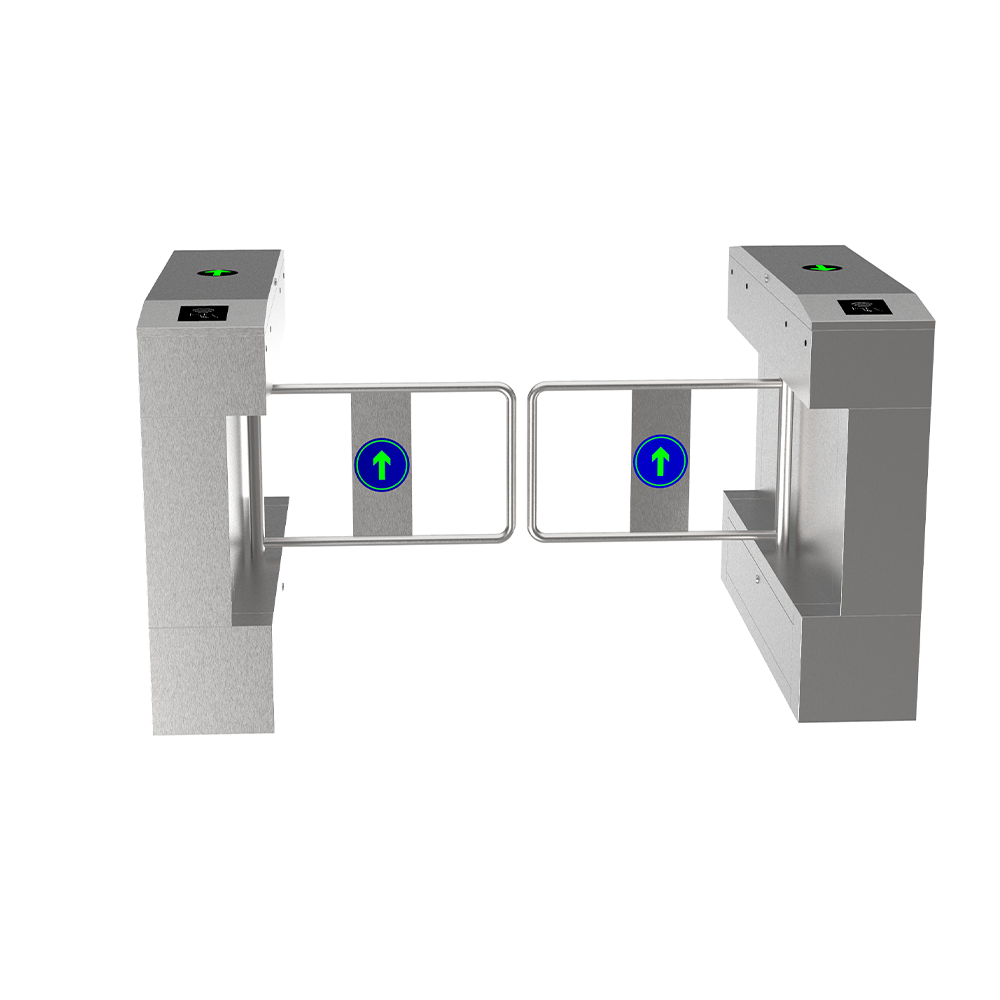

Hotel Bidirectional QR Code Scanner Swing Barrier

PRODUCT DESCRIPTION

• Running stable without noise and mechanical impact
• The passing person number of the persons can be set
• Several ways of working molds for your demand chosen
• Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
• Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
• Direction-guide lights in the turnstile to tell you whether the direction to go or not
• The standard electrical interface connected with various kinds of reader and writer equipment
• All the functions realized in one integration machine and controlled and managed by the computer in the far distance
• The number of the persons passed by can be counted automatically which can also be displayed in LED
• Beam can be lifted and fall when power is cut-off
• The function with or without card-reading memory cab be set according to your demand.
• Self-check and alarm for covenanting to operate

Particular Functions:

DC Brushless Motor, no maintenance all the of life, withthe torque motor to drive and reset, NO Attrition, Low–noise, Intelligence

OPERATING MODES

1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked

MATERIALS

1. Housing:Made in stainless steel 304 andSS 316.
2. Barrier swings-Acrylic, PC, stainless steel frame.

Key Features:

• LED Passage Indicator
• Easy to Operate
• Selectable Operating Modes: Single Direction, Bi-Direction, Free Access, Locked
• Automatic Reset Function
• Stainless Steel SS304/SS316
• Integration with any Card/Biometric Reader

Product Parameter	Parameter Description
Product Name	Swing Turnstile Gate
Power Requirements	AC220 +-10% V/50 +-10% HZ
Working Temperature	-28°C to 60°C
Working Humidity	<= 90% (non-condensing)
Lane Width (mm)	600
Motor	Brushless Motor
Infrared Sensor	4 pairs
Dimension (L*W*H)	1400 * 200 * 980 ( mm )
Gate opening and closing time	1-1.5S(adiustable)
Traffic direction	One or two-way traffic
Communication Interface	Standard RS232/RS485,TCP/TP interface, distance <=1200 meters
input interface	Dry contact signal or +12V level signal or DC12V pulse signal with pulse
Cabinet Material	SUS304 Stainless Steel
Barrier Movement	Swing
Emergency Mode	Support
Warranty	1 year





FAQs of Pedestrians Turnstile Swing Barrier Gate:

Q: What is the material of the Pedestrians Turnstile Swing Barrier Gate?

A: The material of the Pedestrians Turnstile Swing Barrier Gate is stainless steel.

Q: Does the gate come with a remote control?

A: No, the Pedestrians Turnstile Swing Barrier Gate does not come with a remote control.

Q: What is the warranty period for the product?

A: The product comes with a 1-year warranty.

Q: What is the color of the swing barrier gate?

A: The color of the swing barrier gate is silver.

Q: What type of alarm does the gate have?

A: The gate has an anti-retrograde alarm.
