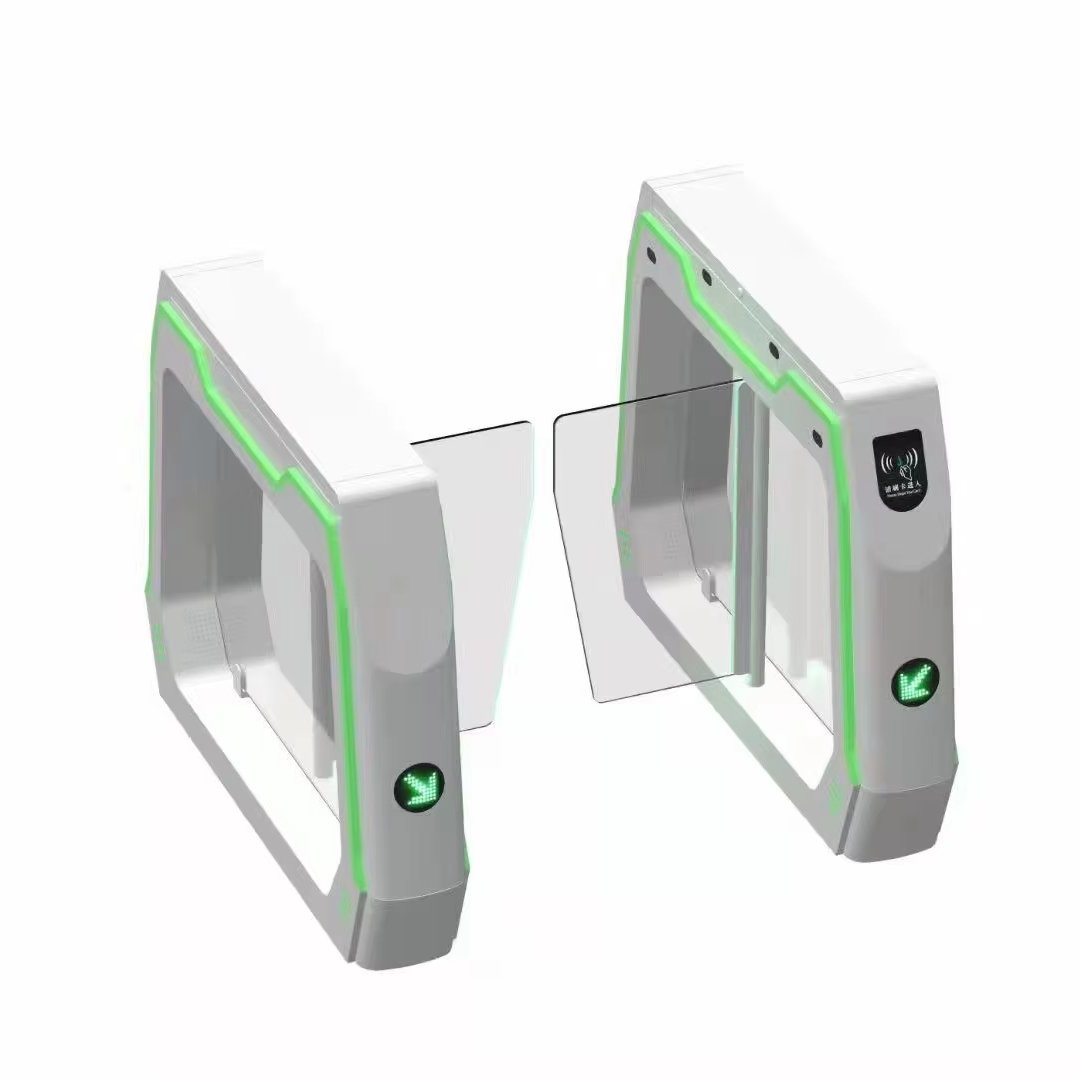

Stainless Steel Amusement Park Swing Turnstile Gate

Specification & Diameters

Product Name	Swing Turnstile	Materials	High quality steel plate

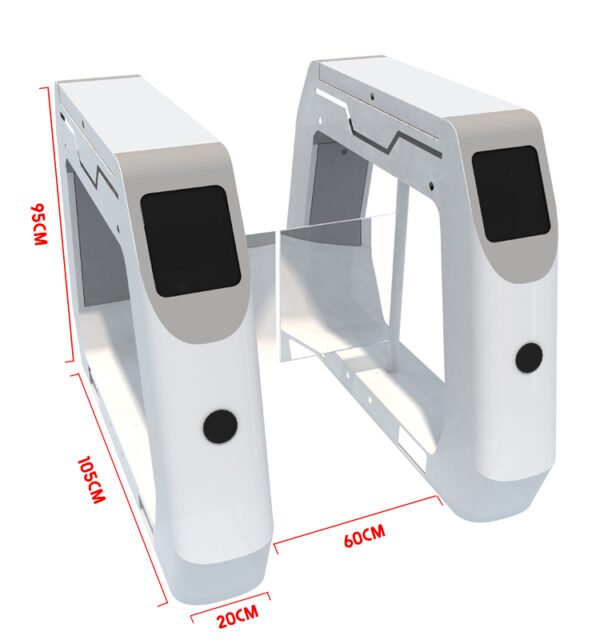

Product Size	1200220950mm	Direction	One-way or two-way
Drive Motor	DC Motor 24V/40W	Swing Speed	1-2s
Pass Speed	20 persons/min	Control Method	Relay/controller
Relative Humidity	≤90%	Production Process	Laser cutting, bending
Temperature	-15℃-60℃	Passage Width	600mm-900mm
Performance	110v-220v 50/60Hz	Installation	Expansion bolt/ground platform
Expansion Modules	ID Card Reader, Code Scanner, LED Controller, Face ID Machine, Fingerprint Module, IC/ID Card Reader
Apply to	Gymnasium, Office Building, Residential Community, Trampoline Park, FEC

The swing turnstile should be part of the POS system in the trampoline park or FEC to realize intelligent access management of the customers. After tickets purchasing, the players can get into the park through the turnstile by face recognition, card swipe, code scan, etc. So the swing turnstile will make your trampoline park/FEC operation more efficient, you don’t need to put staff to check tickets at the entrance.

Advantages & Features

Double anti-pinch: infrared/mechanical dual anti-pinch to protect the safety of passers-by
Automatic reset: the door panel automatically resets and closes the passage if the card is not passed within the passage time after the card is swiped;
Entry alarm: When entering illegally, it will be notified by business and LED status lights;
Intelligent anti-following: automatically close the passage after pedestrians legally walk along to prevent pedestrians from following;
Secondary development: Provide API interface files and technical consultation to facilitate the development of software docking for customers;
Automatic opening after power failure: The gate has a built-in battery, which can automatically open the door after power failure to meet the requirements of fire protection and emergency traffic;
Stable operation: the entire system runs smoothly with low noise;
The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional

Amusement parks typically use tickets or passes to control access. Tickets can be purchased at the entrance or online, and park visitors are required to present a valid ticket or pass when entering the park. Some parks also require visitors to show photo identification when purchasing tickets or passes. Additionally, certain areas of the park may require special access credentials, such as season passes or VIP tickets.
