Stainless Steel Intelligent Fully Automatic Swing Gate

Product Parameter Parameter Description
Model TP3306
Product Name Swing Turnstile Gate
Power Requirements AC220 ,50/60 HZ
Working Temperature -28°C to 60°C
Working Humidity <= 90% (non-condensing)
Lane Width (mm) 600 MM
Motor Brushless Motor

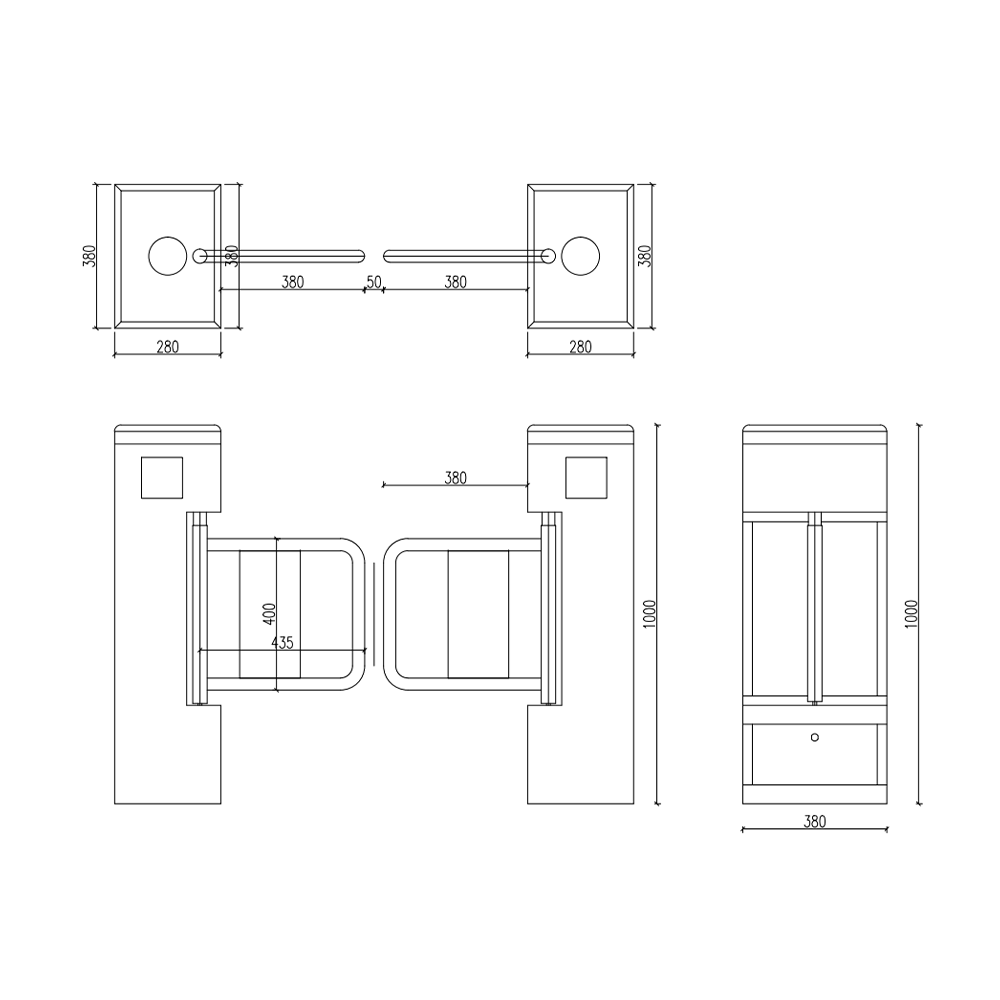

Dimension (L*W*H) 300 * 200 * 980 ( mm )
Gate opening and closing time 1-1.5S(adiustable)
Traffic direction One or two-way traffic
Communication Interface Standard RS232/RS485,TCP/TP interface, distance <=1200 meters
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel + Acrylic
Barrier Material Tempered Glass ( optional: arcylic )
Barrier Movement Swing
Emergency Mode Support
Warranty 1 year





Swing turnstiles offer a modern, secure,and accessible solution for controlling pedestrian traffic in a variety of environments.

Swing Turnstiles are a type of access control gate used to regulate entry  and exit in various settings such as office buildings, public transportation stations,  and sports arenas. Unlike traditional turnstiles that use rotating arms, swing turnstiles feature barrier arms or panels that swing open and closed to allow or restrict passage.

Here are some key features and aspects of swing turnstiles:

  1. Design: They typically have one or two swinging barriers made of glass, metal, or plastic. These barriers swing open to allow entry and close to block passage.
  2. Operation: Swing turnstiles can be operated manually, semi-automatically, or fully automatically, often integrating with access control systems like keycards, biometrics, or ticket readers.
  3. Accessibility: They are designed to provide wider passages compared to traditional tripod turnstiles, making them suitable for people with disabilities, those carrying large items, or for wheelchair access.
  4. Security:Swing turnstiles can be equipped with sensors and alarms to prevent unauthorized entry and ensure that only one person passes through per authorized access.
  5. Usage: They are commonly used in places where aesthetics and accessibility are important, such as corporate offices, airports, and high-end facilities.
